K77 Remote Control Door Lock Receiver
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

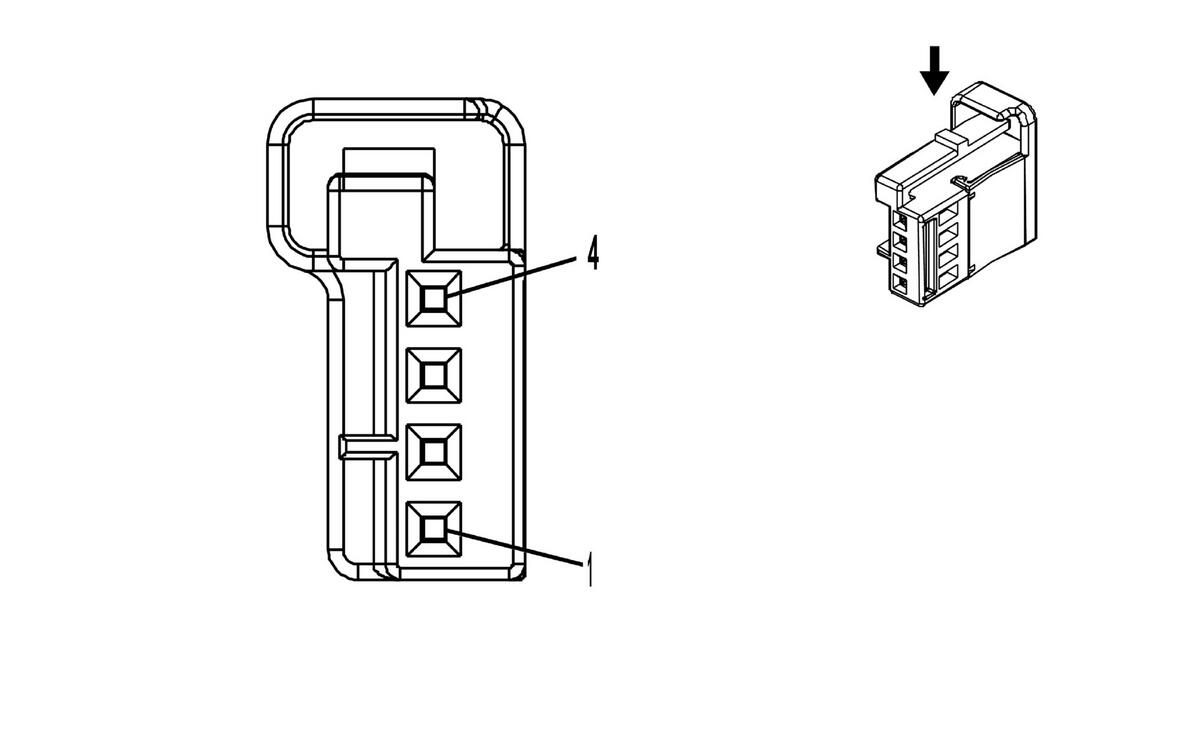

Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 13365028
- Service Connector: 19371213
- Description: 4 -Way F 0.64 Micro-Quadlock Series, Sealed(BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
1950 |
Ground |
I |
- |
| 2 |
0.35 |
YE / GN |
3274 |
Remote Control Door Lock Receiver Transmit Signal |
I |
- |
| 3 |
0.35 |
BU / WH |
3275 |
Remote Control Door Lock Receiver Receive Signal |
I |
- |
| 4 |
0.35 |
GY / WH |
3272 |
Remote Control Door Lock Receiver Control |
I |
- |
