E43L Liftgate Tail Lamp Assembly - Left (X88+UGE)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

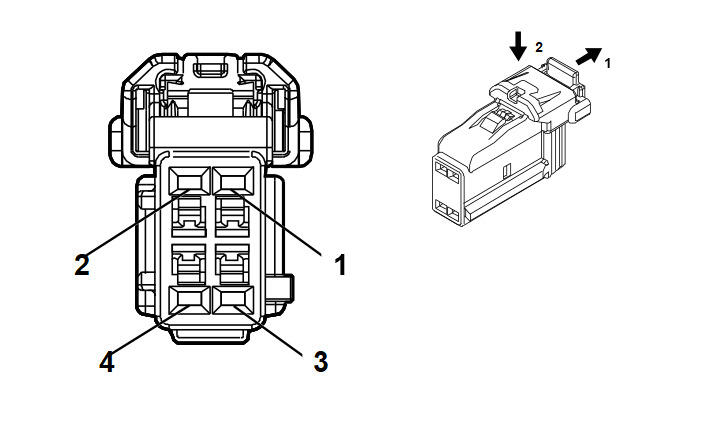

Connector Part Information
- Harness Type:Liftgate Wiring Harness
- OEM Connector: 13533336
- Service Connector: Service by Harness - See Part Catalog
- Description: 4 -Way F 1.2 Series(GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH / YE |
1204 |
Left Park Lamp Control 2 |
I |
-UV2-UVB |
| 2 |
0.5 |
GN / WH |
1324 |
Backup Lamp Control |
I |
UGE |
| 3 |
0.35 |
BK |
2550 |
Ground |
I |
UGE |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
