B63LF Side Impact Sensor - Left Front
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

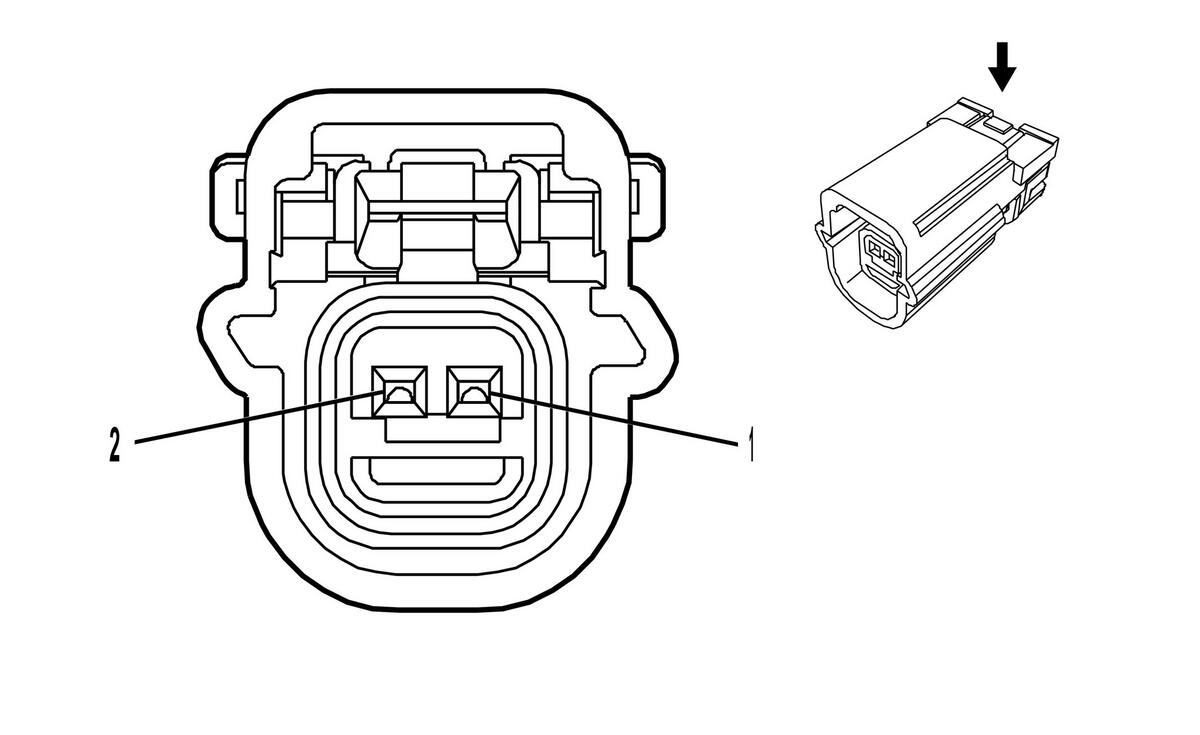

Connector Part Information
- Harness Type:Front Side Door Door Wiring Harness - Driver
- OEM Connector: 13598829
- Service Connector: Service by Harness - See Part Catalog
- Description: 2 -Way F 0.64 OCS Series, Sealed(GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
OG / GN |
2132 |
Left Front Side Impact Sensor Signal |
I |
AY0 |
| 2 |
0.35 |
BK / OG |
6628 |
Left Front Side Impact Sensor Low Reference |
I |
AY0 |
