B22 Brake Pedal Position Sensor
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

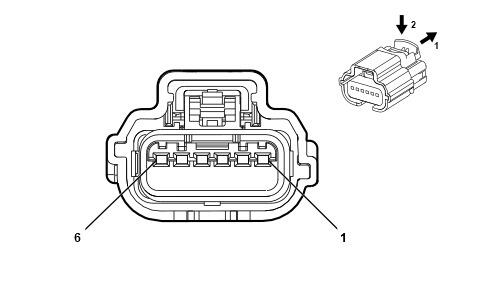

Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 13526329
- Service Connector: 84683650
- Description: 6 -Way F 64 Series, Sealed(NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH |
5359 |
Brake Apply Sensor Control |
I |
-JE0 |
| 2 |
0.35 |
BK / BN |
5360 |
Brake Apply Sensor Low Reference |
I |
-JE0 |
| 3 |
0.35 |
BU / YE |
5361 |
Brake Apply Sensor Signal |
I |
-JE0 |
| 4 |
0.35 |
WH / GN |
5380 |
Brake Position Sensor Signal |
I |
-JE0 |
| 5 |
0.35 |
WH / RD |
5381 |
Brake Position Sensor 5V Reference |
I |
-JE0 |
| 6 |
0.35 |
BK / YE |
5382 |
Brake Position Sensor Low Reference |
I |
-JE0 |
