A11 Radio X5 (U2K+IOU/IOS)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

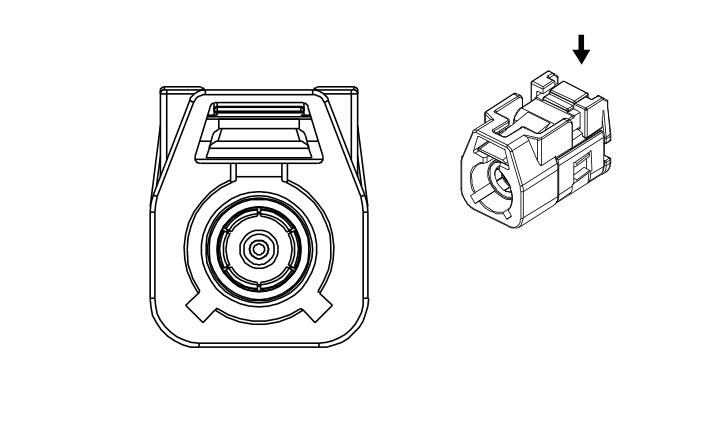

Connector Part Information
- Harness Type:Instrument Panel Wiring Harness COAX
- OEM Connector: 13586878
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1 -Way F Coax Type(CU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| C |
0.1 |
BK |
6130 |
Coaxial Antenna XM Signal |
I |
U2K+(IOS/IOT/IOU) |
| Coax Cable |
- |
- |
- |
Not Occupied |
- |
- |
| S |
0.1 |
SI |
6131 |
XM Antenna Coaxial Cable Low Reference |
I |
U2K+(IOS/IOT/IOU) |
Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Instrument Panel Wiring Harness COAX
- OEM Connector: 13586878
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1 -Way F Coax Type(CU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
(XM +/-HD) Coaxial Antenna XM Signal |
I |
- |
