A11 Radio X2 (IOR)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

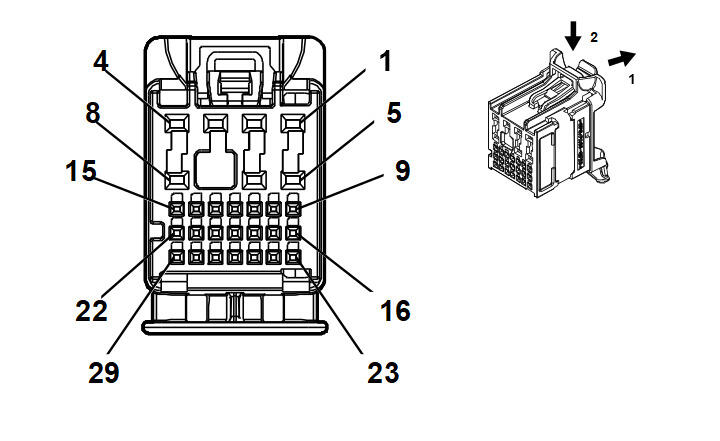

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19370262 | EL-35616-58 (BK) | EL-38125-58 |
| II | 84729890 | J-35616-12 (BU) | J-38125-215A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 | GN | 199 | Left Rear Speaker [+] Control | II | IOR+UZ6 |
| 2 | 0.75 | BU | 201 | Left Front Speaker 1 [+] Control | II | IOR+UZ6 |
| 3 | 0.75 | YE | 200 | Right Front Speaker 1 [+] Control | II | IOR+UZ6 |
| 4 | 0.75 | BU / BK | 115 | Right Rear Speaker [-] Control | II | IOR+UZ6 |
| 5 | 0.75 | BN / BU | 118 | Left Front Speaker [-] Control 1 | II | IOR+UZ6 |
| 6 | 0.75 | YE / BK | 117 | Right Front Speaker [-] Control 1 | II | IOR+UZ6 |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | 0.75 | WH | 46 | Right Rear Speaker [+] Control | II | IOR+UZ6 |
| 9 | 0.35 0.35 |
BK / GY BK / BN |
5152 654 |
Voice Recognition Audio [-] Control Cellular Telephone Microphone Low Reference |
I I |
IOR+UE1 IOR-UE1 |
| 10 | 0.35 0.35 |
GY / YE BU |
5149 655 |
Voice Recognition Audio Signal Cellular Telephone Microphone Signal |
I I |
IOR+UE1 IOR-UE1 |
| 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.35 | GY / YE | 6972 | Rearview Camera Signal [+] | I | IOR+UVC |
| 13 | 0.35 | WH / BU | 6973 | Rearview Camera Signal [-] | I | IOR+UVC |
| 14 | 0.35 | WH / GN | 1776 | Active Noise Cancellation Microphone 4 Low Reference | I | IOR+NKC |
| 15 | 0.35 | VT / BU | 1775 | Active Noise Cancellation Microphone 4 Signal | I | IOR+NKC |
| 16 - 19 | - | - | - | Not Occupied | - | - |
| 20 | 0.35 | GY / BN | 3010 | Active Noise Cancellation Microphone 3 Feedback SIgnal | I | IOR+NKC |
| 21 | 0.35 | GY / BU | 3007 | Active Noise Cancellation Microphone 3 Signal | I | IOR+NKC |
| 22 | 0.35 | BU / BK | 3009 | Active Noise Cancellation Microphone 2 Feedback Signal | I | IOR+NKC |
| 23 - 26 | - | - | - | Not Occupied | - | - |
| 27 | 0.35 | GN / BN | 3005 | Active Noise Cancellation Microphone 1 Signal | I | IOR+NKC |
| 28 | 0.35 | GN / BK | 3008 | Active Noise Cancellation Microphone 1 Feedback Signal | I | IOR+NKC |
| 29 | 0.35 | BU / YE | 3006 | Active Noise Cancellation Microphone 2 Signal | I | IOR+NKC |
