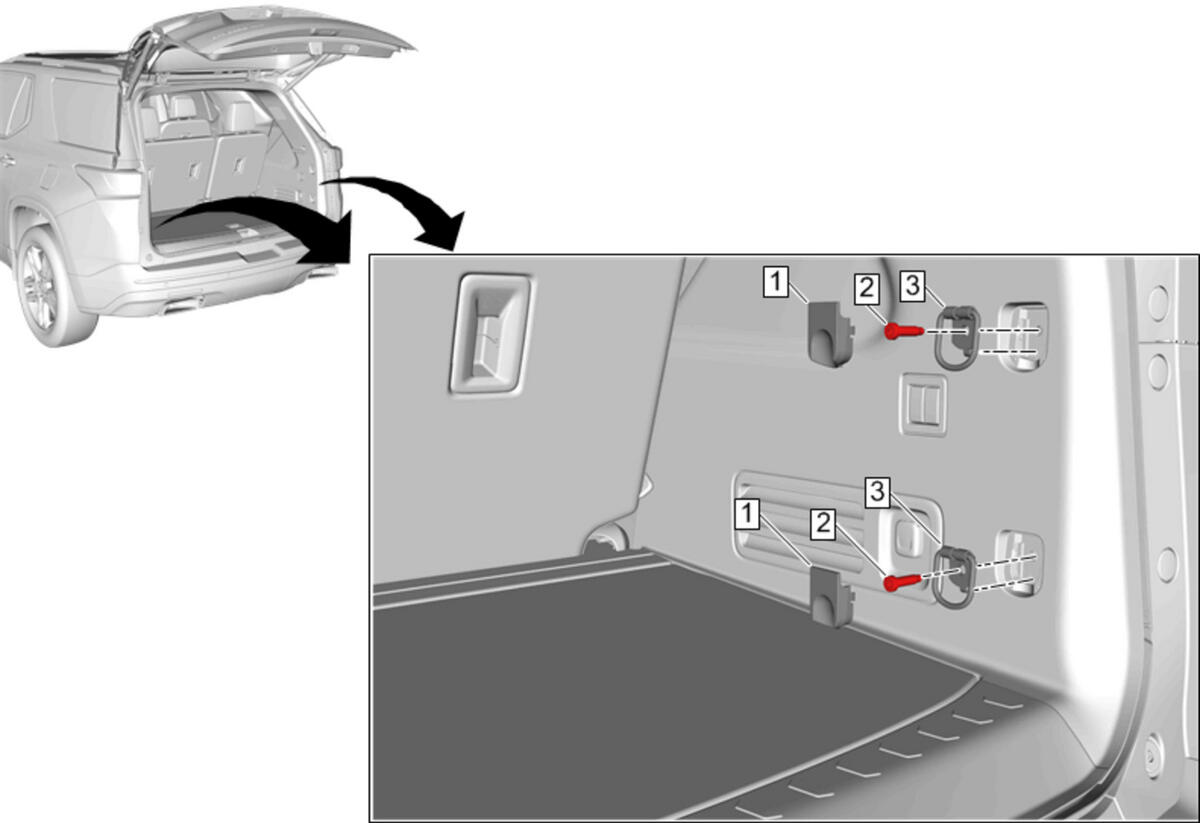

Cargo Tie Down Loop Replacement
| Callout | Component Name |
|---|---|
| 1 | Cargo Tie Down Loop Trim Cover [ 4x ] Procedure Use a small flat-bladed tool to disengage integral tabs on cargo tie down loop trim cover from the quarter lower rear trim panel. |
| 2 | Cargo Tie Down Loop Fastener [ 4x ]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 3 | Cargo Tie Down Loop [ 4x ] |
