Left Side and Center of Passenger Compartment Components

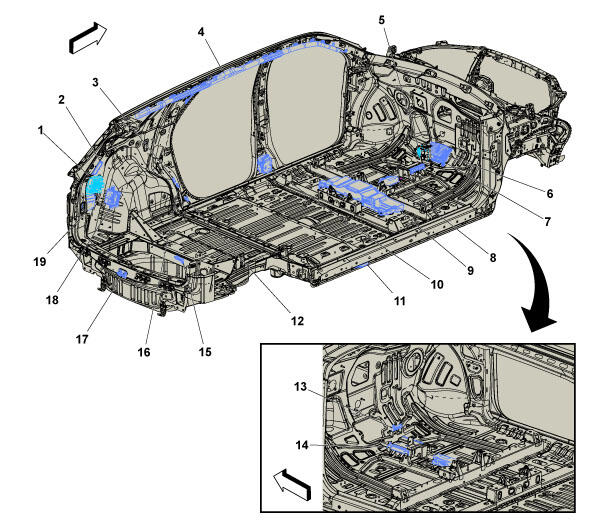

GM5701911Courtesy of GENERAL MOTORS COMPANY
Left Side and Center of Passenger Compartment Components

Component Name Callout
X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body X1 , or X53A Fuse Block - Rear Body X2 , or X53A Fuse Block - Rear Body X3 1
K39 Liftgate Control Module (TB5 or TC2) K39 Liftgate Control Module X1 (TB5/TC2) , or K39 Liftgate Control Module X2 (TB5/TC2) , or K39 Liftgate Control Module X3 (TB5/TC2) 2
R6E Terminating Resistor - High Speed Extension Bus 1 R6E Terminating Resistor - High Speed Extension Bus 1 3
F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left 4
T19 Power Supply Transformer T19 Power Supply Transformer 5
T3 Audio Amplifier (UQA) T3 Audio Amplifier X1 (UQA) , or T3 Audio Amplifier X2 (UQA) , or T3 Audio Amplifier X3 (UQA) , or T3 Audio Amplifier X4 (UQA) 6
K108 Active Noise Cancellation Module (UQF) K108 Active Noise Cancellation Module X1 (UQF) , or K108 Active Noise Cancellation Module X2 (UQF) , or K108 Active Noise Cancellation Module X3 (UQF) 7
K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 8
P19AC Speaker - Subwoofer P19AC Speaker - Subwoofer (UQA) 9
F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver 10
T10R Keyless Entry Antenna - Right Body 11
B63LR Side Impact Sensor - Left Rear B63LR Side Impact Sensor - Left Rear 12
T10U Keyless Entry Antenna - Instrument Panel T10U Keyless Entry Antenna - Instrument Panel 13
K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 14
T10E Keyless Entry Antenna - Rear Compartment T10E Keyless Entry Antenna - Rear Compartment 15
R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus (F48) , or R6A Terminating Resistor - High Speed Bus (UEU-F48) 16
T10G Keyless Entry Antenna - Rear Fascia T10G Keyless Entry Antenna - Rear Fascia 17
K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1 , or K84 Keyless Entry Control Module X2 18
K157 Video Processing Control Module (UV2) K157 Video Processing Control Module X1 (UV2) , or K157 Video Processing Control Module X3 (UV2) , or K157 Video Processing Control Module X4 (UV2) , or K157 Video Processing Control Module X5 (UV2) 19
