Removal Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5408645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation

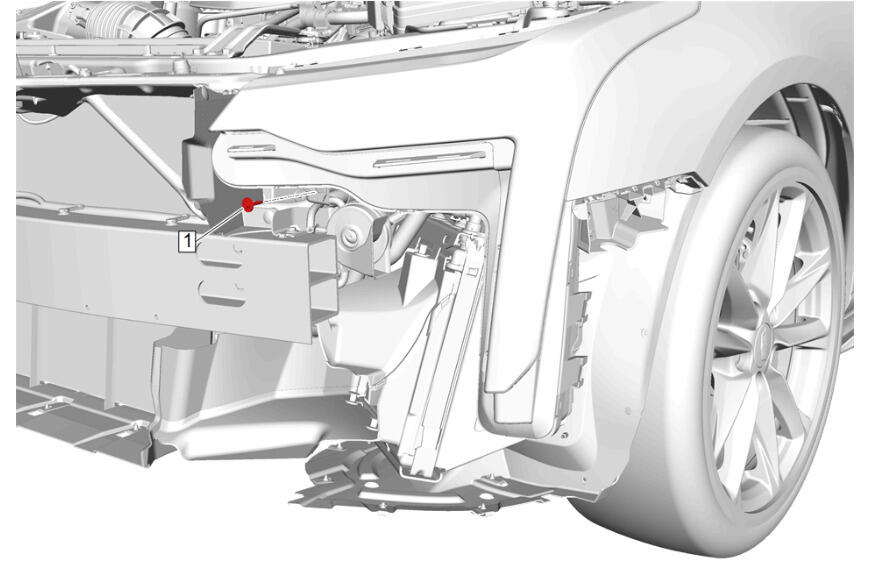

  2. GM5433853Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove

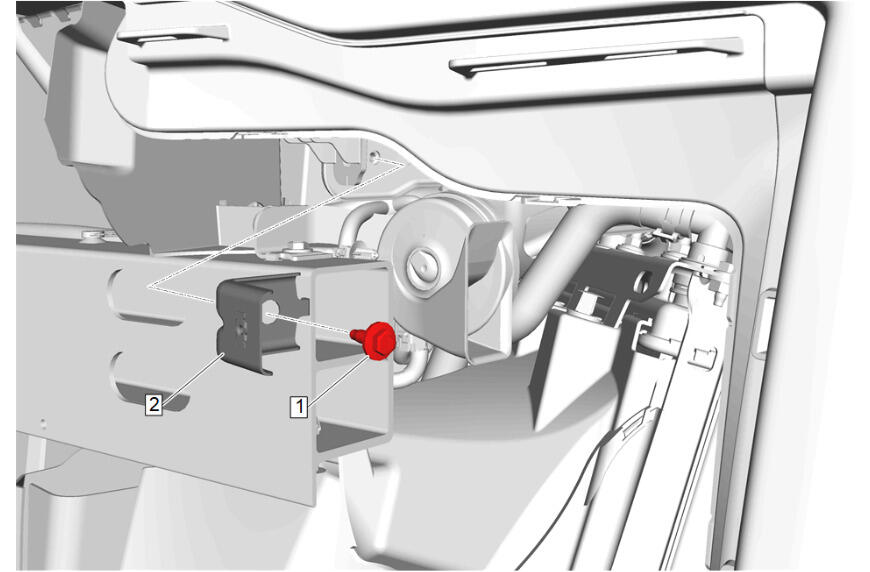

  3. GM5433854Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bracket Bolt (1) - Remove

  4. Headlamp Bracket (2) - Remove
