Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

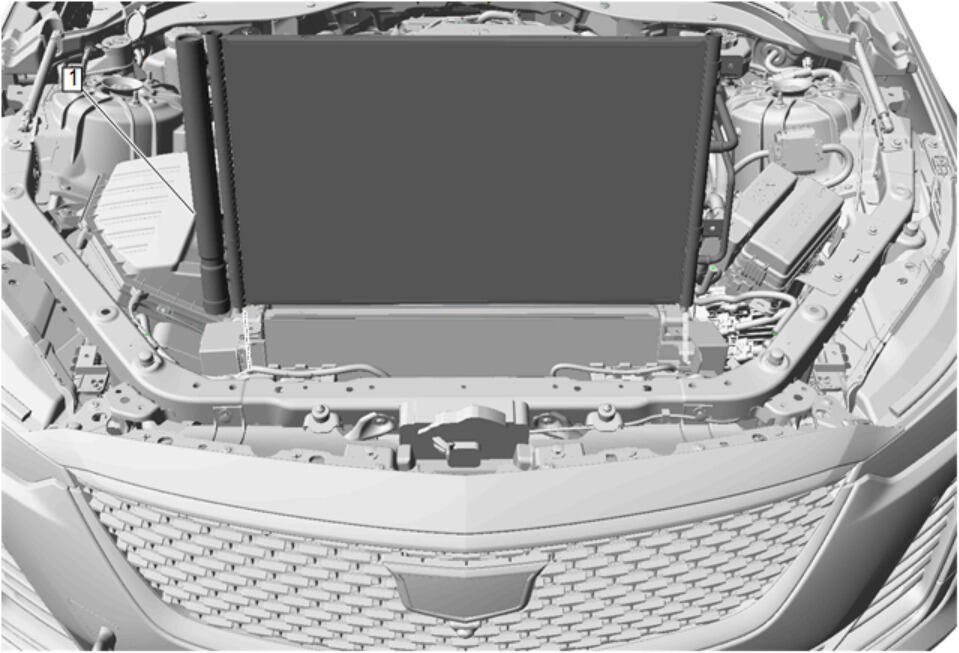

Install the air conditioning condenser (1) back into the engine compartment by tilting the left and right side radiator air side baffles outward maneuvering condenser past the baffles.
- CAUTION:
Refer to Fastener Caution .

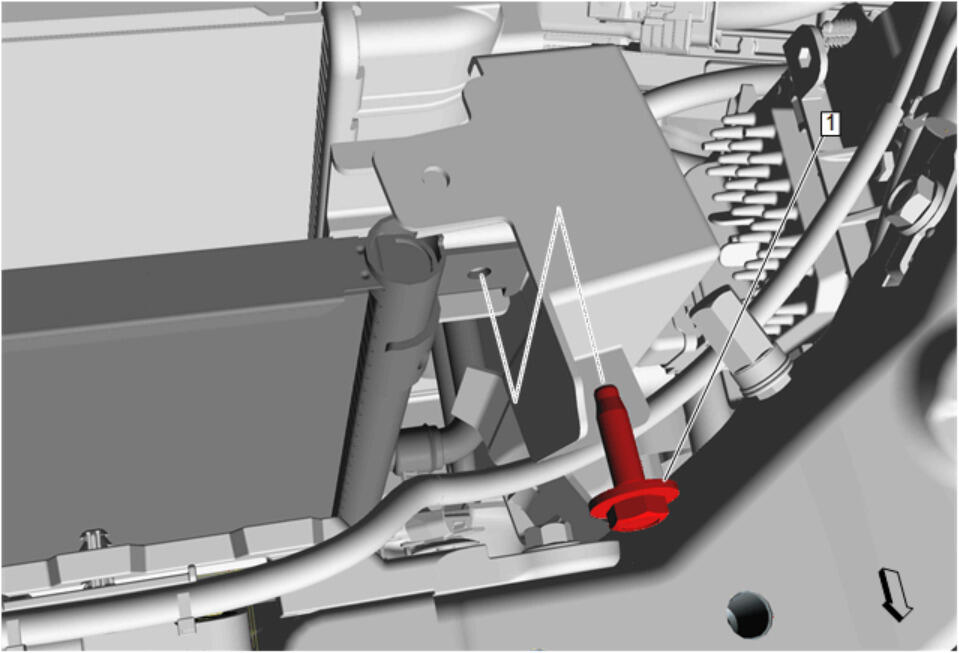

Air Conditioning Condenser Bolt (1) - Install and tighten - Fastener Specifications
Radiator Air Seal Retainer (2) - Install [ 2x ]
- Air Conditioning Condenser Tube Bolt (1) - Install and tighten - Fastener Specifications

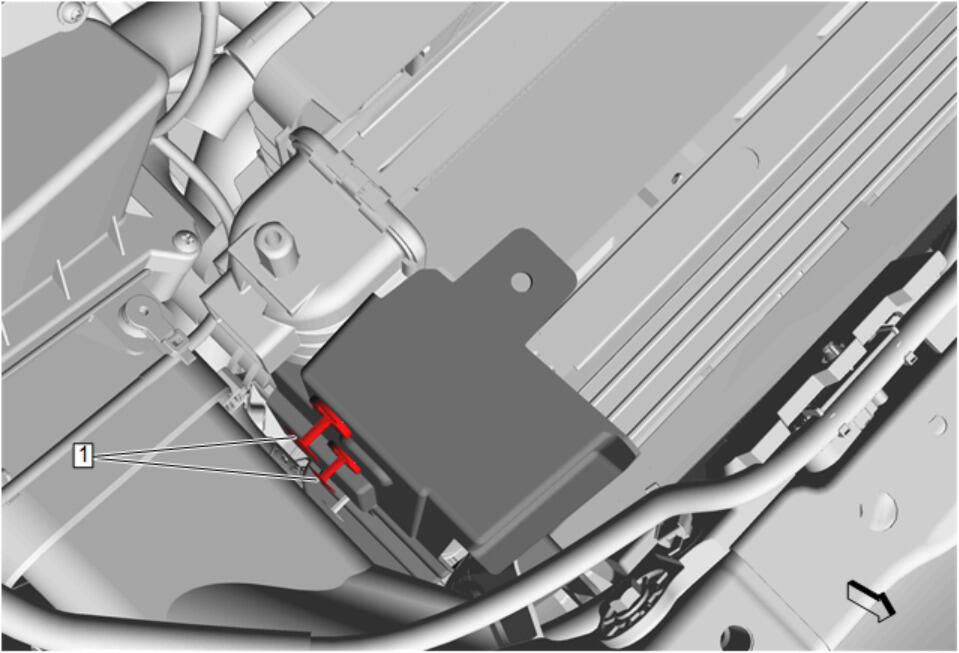

Radiator Air Seal Retainer (1) - Install [ 2x ]

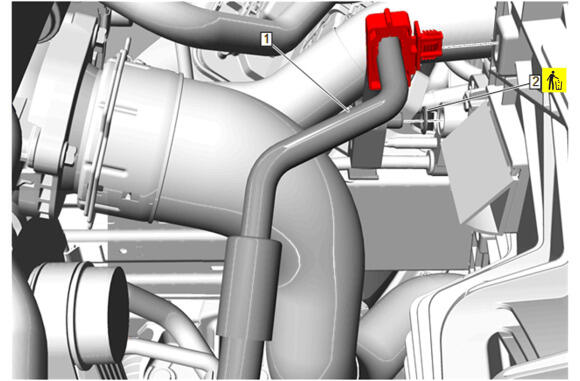

Air Conditioning Condenser Hose Seal (2) - Install NEW
- Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Install

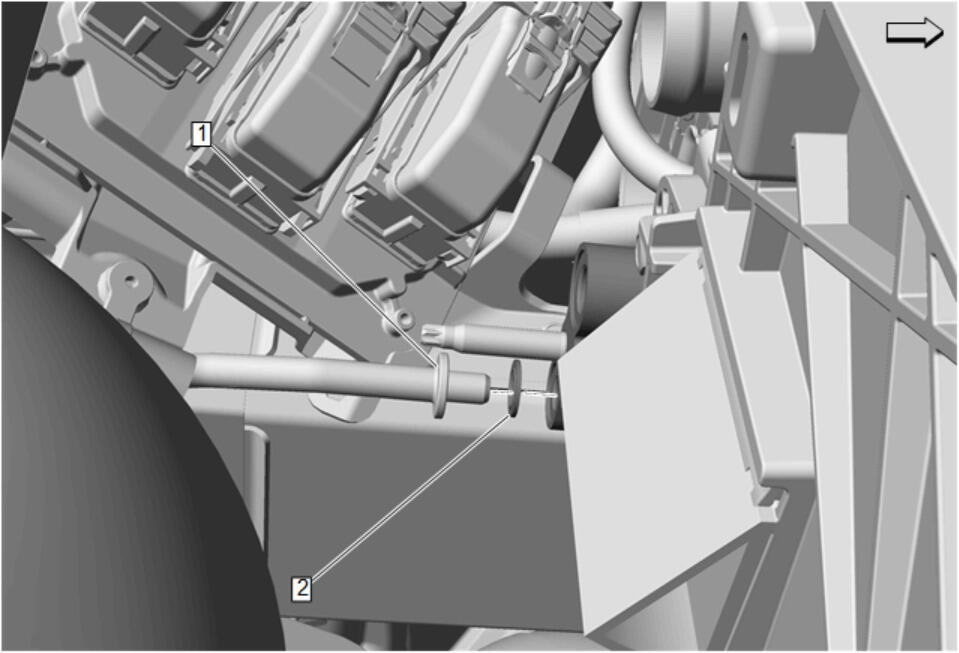

Air Conditioning Compressor and Condenser Hose Seal (2) - Install NEW
- Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Install

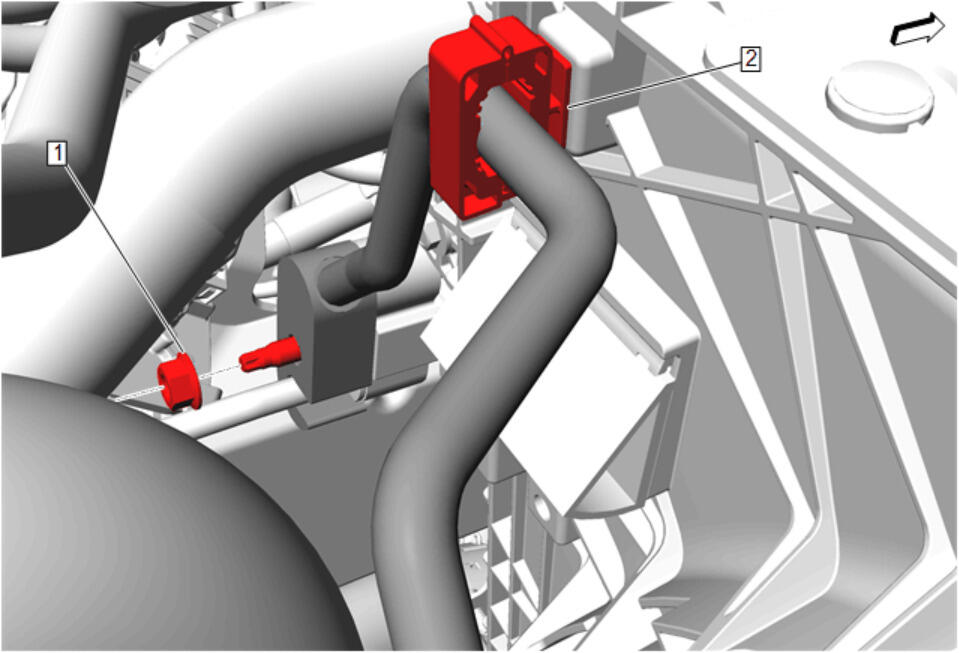

Air Conditioning Condenser Tube Clip (2) - Install
- Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Condenser - Install and tighten - Fastener Specifications
Radiator Upper Bracket - Left Side (2) - Install
- Radiator Upper Bracket Bolt (1) - Install and tighten [ 2x ] -
Radiator Upper Bracket - Right Side (3) - Install
- Radiator Upper Bracket Bolt (2) - Install and tighten [ 2x ] -

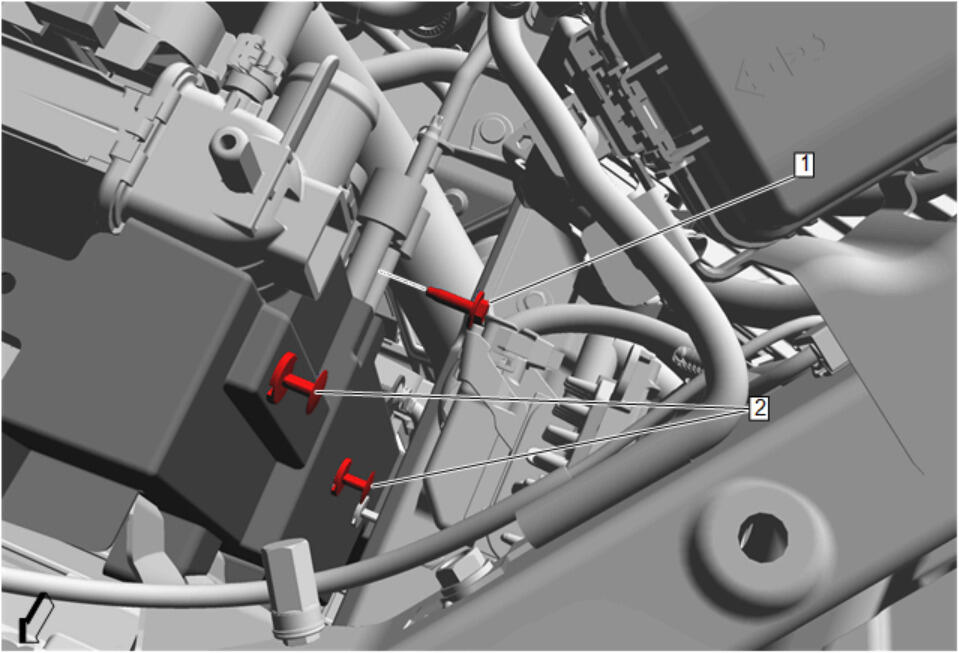

- Retainer (1) - Install
Radiator Air Upper Baffle (2) - Install
- Radiator Air Upper Deflector Retainer (1) - Install [ 7x ]
- Recharge the refrigerant. Refrigerant Recovery and Recharging
- Inspect for refrigerant leaks.
