B160 Windshield Temperature and Inside Moisture Sensor (UEU)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

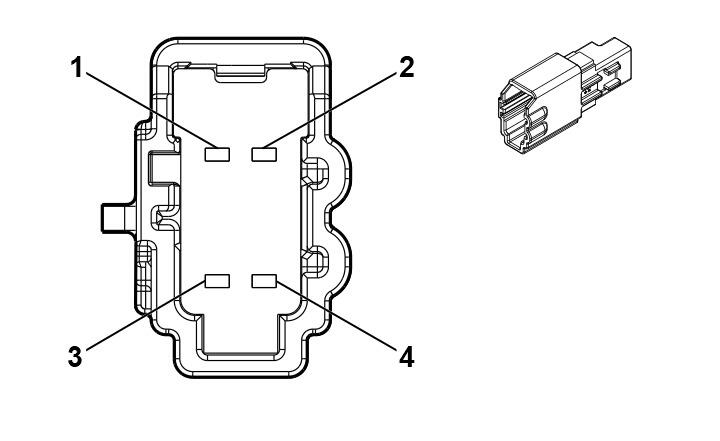

Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 13530132
- Service Connector: 84847258
- Description: 4 -Way M 1.2 MCON Series(BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / BN |
1440 |
Battery Positive Voltage |
I |
ASV+KL9+UEU |
| 2 |
0.35 |
BK |
1550 |
Ground |
I |
ASV+UEU |
| 3 |
0.35 |
GN / BU |
4119 |
HVAC Control Module LIN Bus 2 |
I |
ASV+UEU |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
