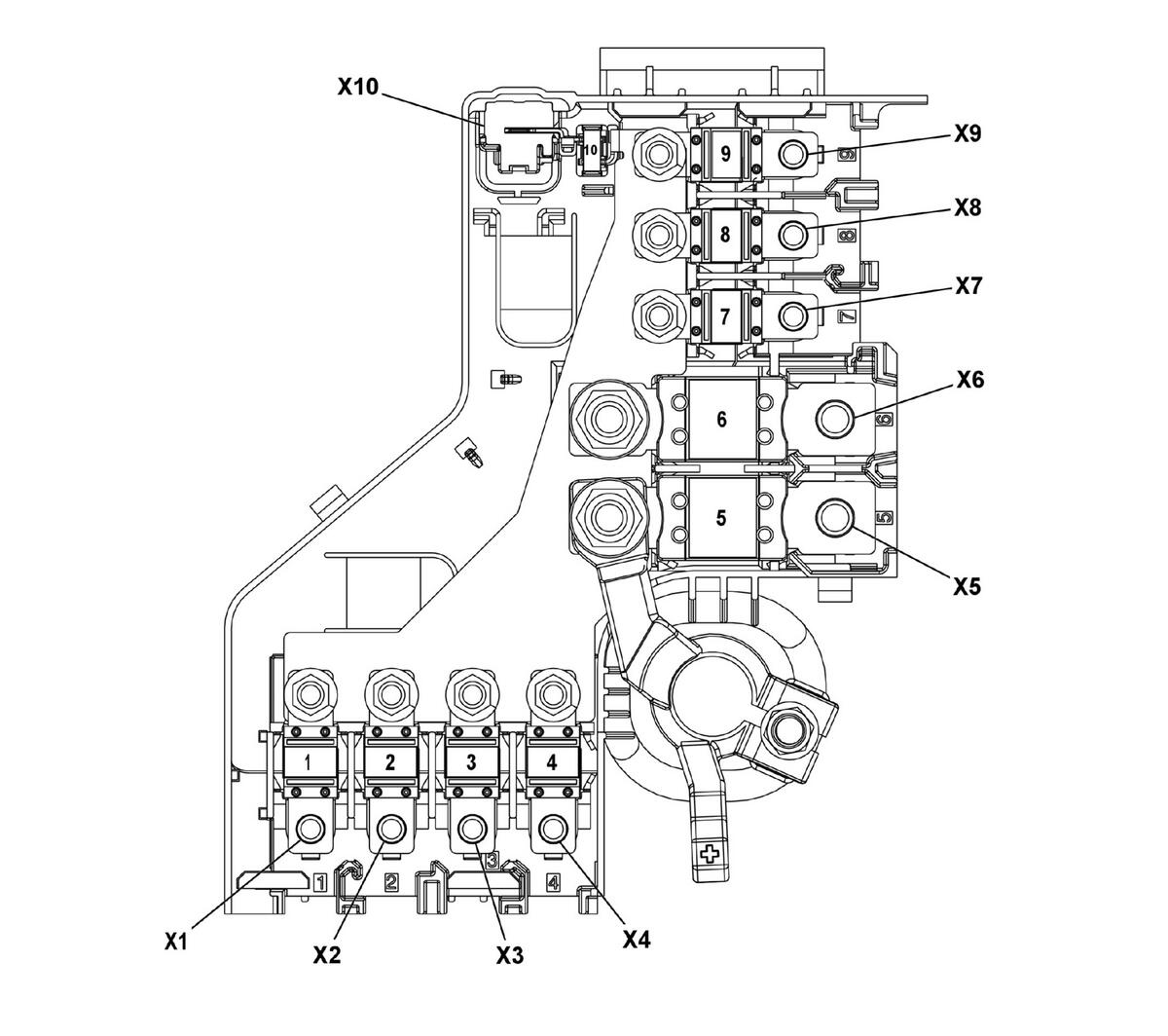

X50D Fuse Block - Battery Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
1	-	F1BA	150A	X53A Fuse Block - Rear Body
2	-	F2BA	100A	X51A Fuse Block - Instrument Panel
3	-	F3BA	100A	X51A Fuse Block - Instrument Panel
4	-	F4BA	70A	G10 Cooling Fan Motor
5	-	F5BA	250A	X50A Fuse Block - Underhood
6	-	F6BA	350A	M64 Starter Motor
7	-	F7BA	200A	G13 Generator
8	-	F8BA	150A	K43 Power Steering Control Module
9	-	F9BA	100A	Not Used
10	-	F10BA	5A	B110 Battery Sensor Module K9 Body Control Module
