Installation Procedure

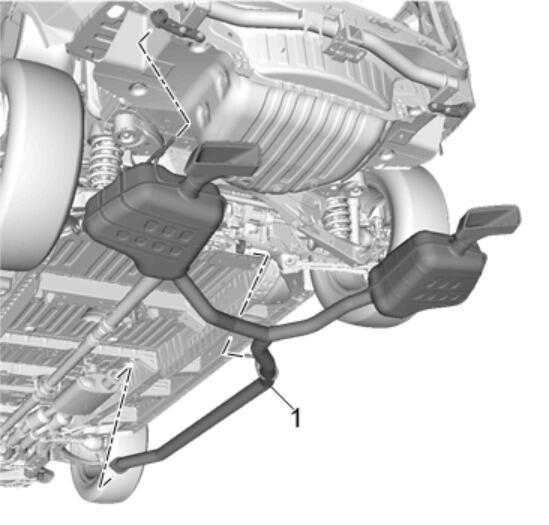

  1. GM4749708Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the exhaust muffler (1) to the vehicle.

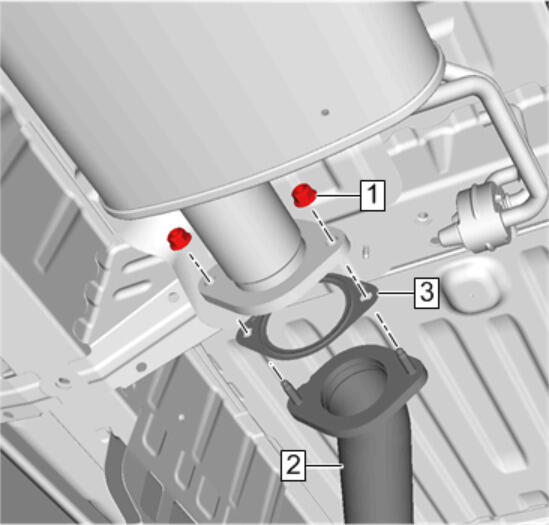

  2. GM4749707Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install NEW gaskets.

    Exhaust Gasket (3) - Install

  3. Exhaust Muffler (2) - Connect
    4. CAUTION:

    Refer to Fastener Caution .

  4. Exhaust Muffler Flange Nut (1) - Install and tighten [ 2x ] 22 N.m (16 lb ft)
  5. Lower the vehicle. Lifting and Jacking the Vehicle
