Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

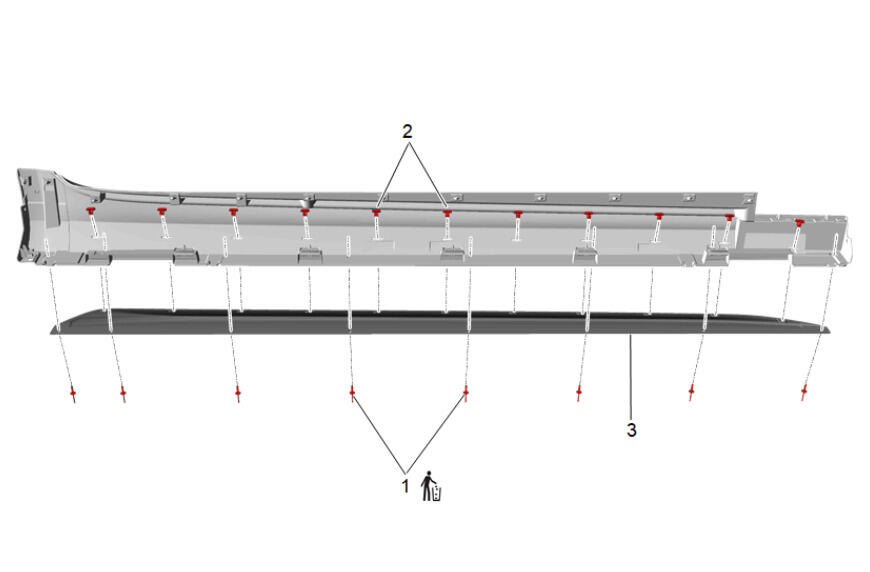

Install the rocker panel molding insert (3).
- Rocker Panel Molding Clip(2) - Install [11x]
- Rocker Panel Molding Rivet (1) - Install NEW [8x]
Position the rocker panel molding (2) to the vehicle and seat the upper rocker panel molding retainers (1) into the body side outer panel.
- Seat the lower rocker panel molding retainers (1) into the body side outer panel.
Position the rear wheelhouse liner (4) to its original location.
- Rear Wheelhouse Liner Retainer(3)Install
- Rear Tire Front Air Deflector(2) - Install
- Rear Tire Front Air Deflector Bolt(1) - Install and tighten [3x] - Fastener Specifications
Position the front wheelhouse liner (2) to its original location.
- Front Wheelhouse Liner Retainer(1) - Install
- Close both front and rear side doors.
CAUTION:
Refer to Fastener Caution .
