Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

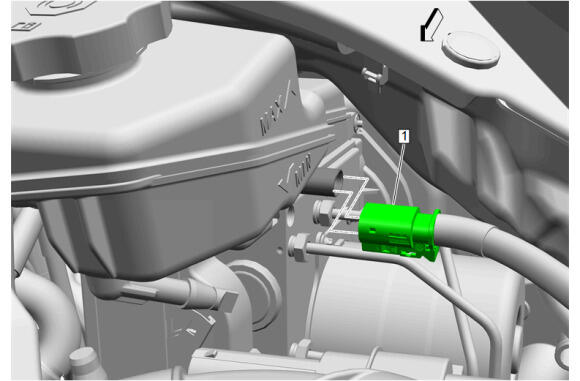

Electrical Connector (1)@Brake Fluid Level Sensor - Disconnect
 Courtesy of GENERAL MOTORS COMPANY
|

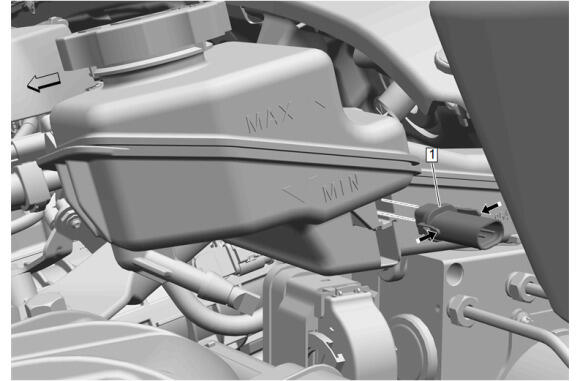

Depress the tabs to release the brake fluid level sensor (1) and remove it from the brake master cylinder reservoir.
- Brake Fluid Level Sensor (1) - Remove
