Installation Procedure

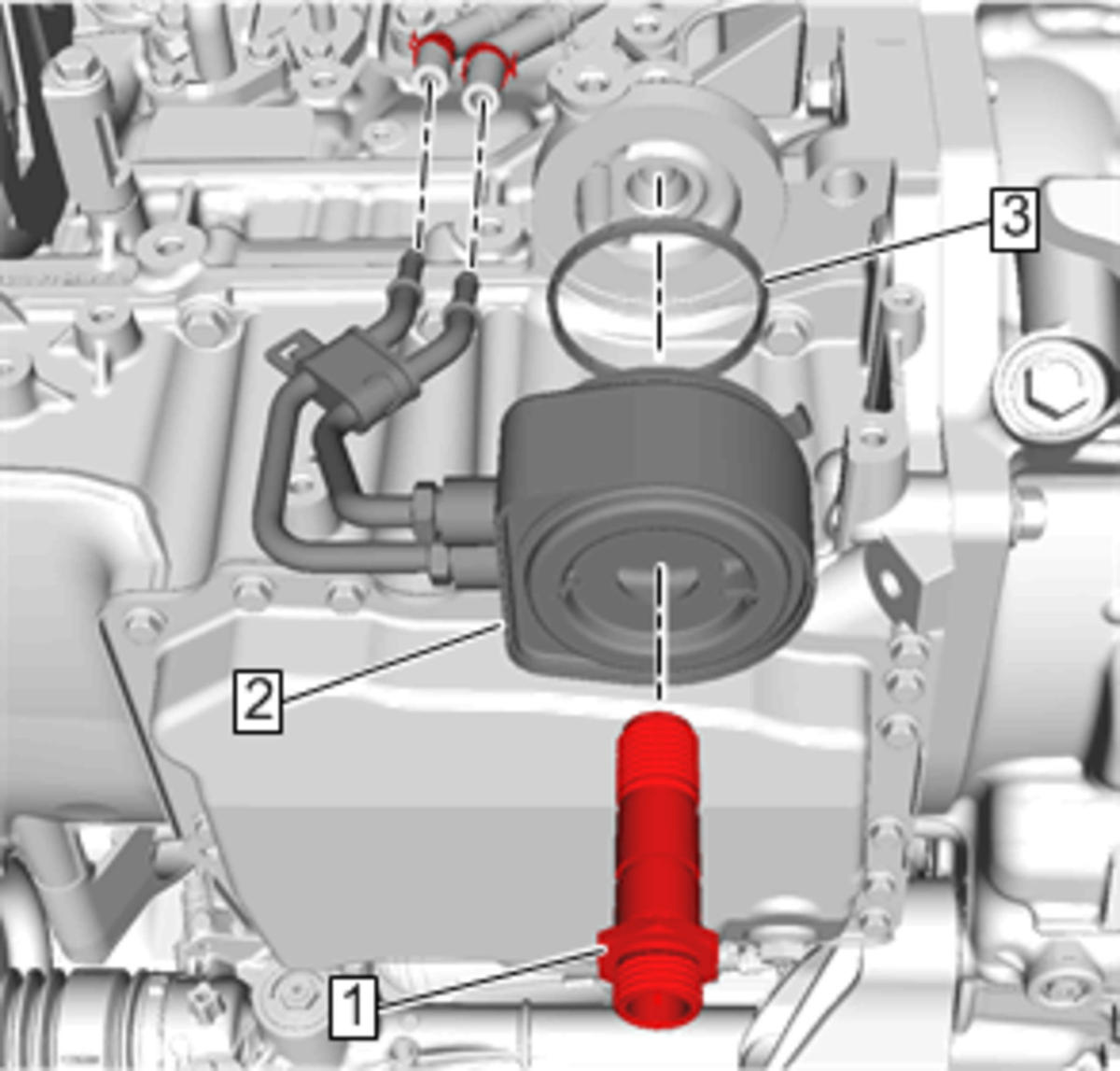

  1. GM4244417Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install a NEW seal.

    Engine Oil Cooler Seal (3) - Install

  2. Engine Oil Cooler (2) - Install
  3. Engine Oil Cooler Core Bolt (1) - Hand tighten

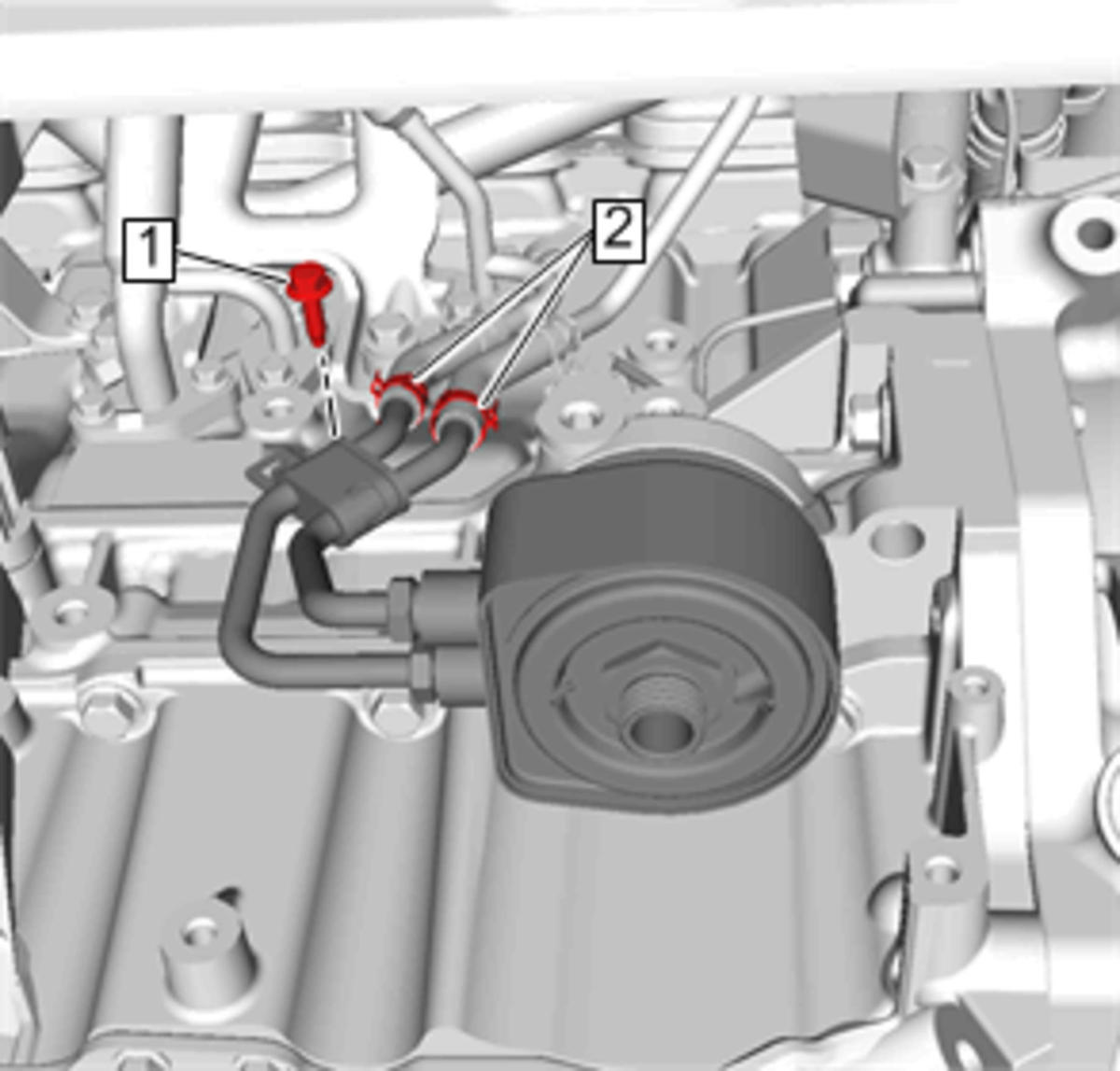

  4. GM4244414Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Hose Clamp (2) - Engage [ 2x ] - Hose Clamp Replacement Guidelines - Spring Type

    5. CAUTION:

    Refer to Fastener Caution .

  5. Engine Oil Cooler Pipe Fastener (1) - Install and tighten 10 N.m (89 lb in)

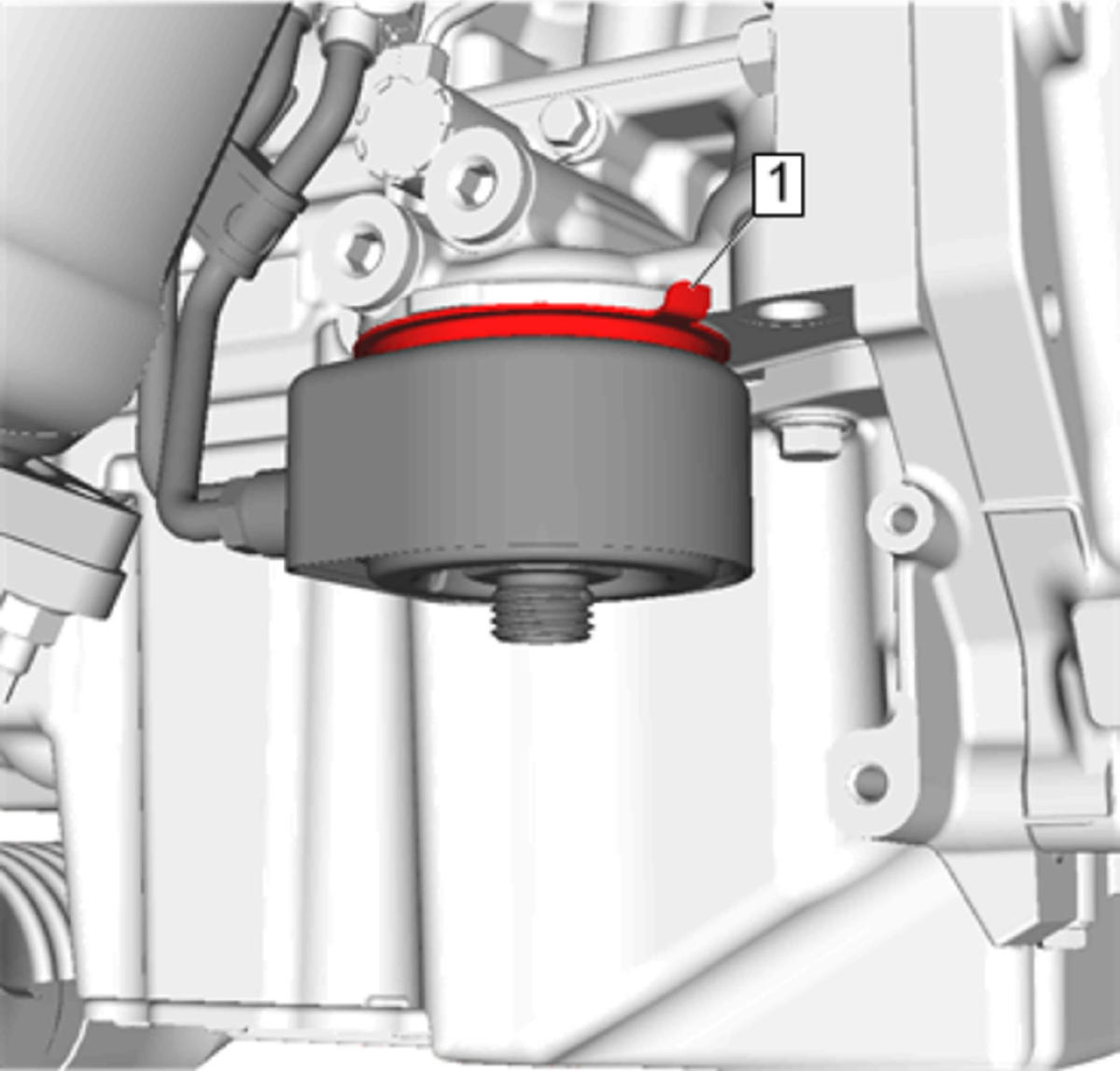

  6. GM4321655Courtesy of GENERAL MOTORS COMPANY

    Ensure that the engine oil cooler locating tab (1) is positioned against the engine block.

  7. GM4244417Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Engine Oil Cooler Core Bolt (1) - Tighten 50 N.m (37 lb ft)

  8. Oil Pump Flow Control Valve Heat Shield - Install -
  9. Change the engine oil and filter.
  10. Fill the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
