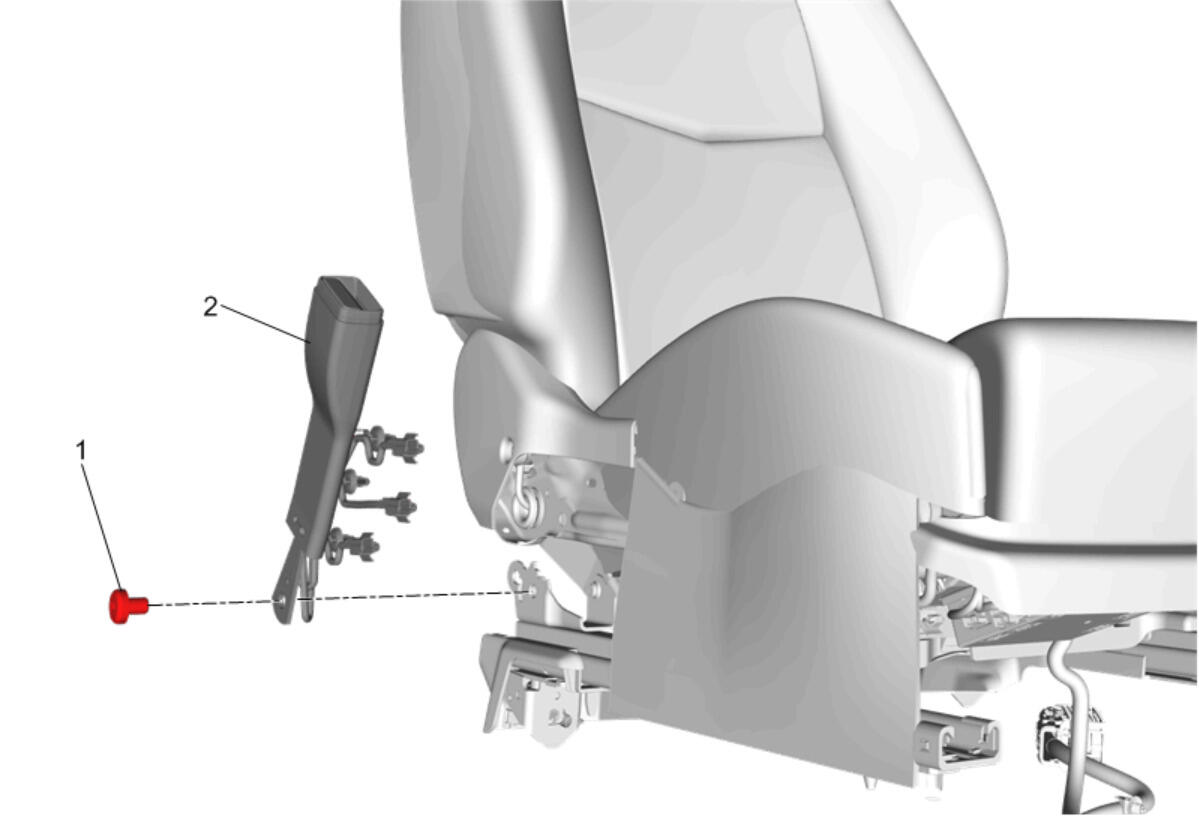

Front Seat Belt Buckle Bolt
- Remove the front seat belt buckle bolt.
- If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the component.Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
Tighten
45 N.m (33 lb ft) |
