3rd Row Center Seat Belt Retractor Replacement

Courtesy of GENERAL MOTORS COMPANY

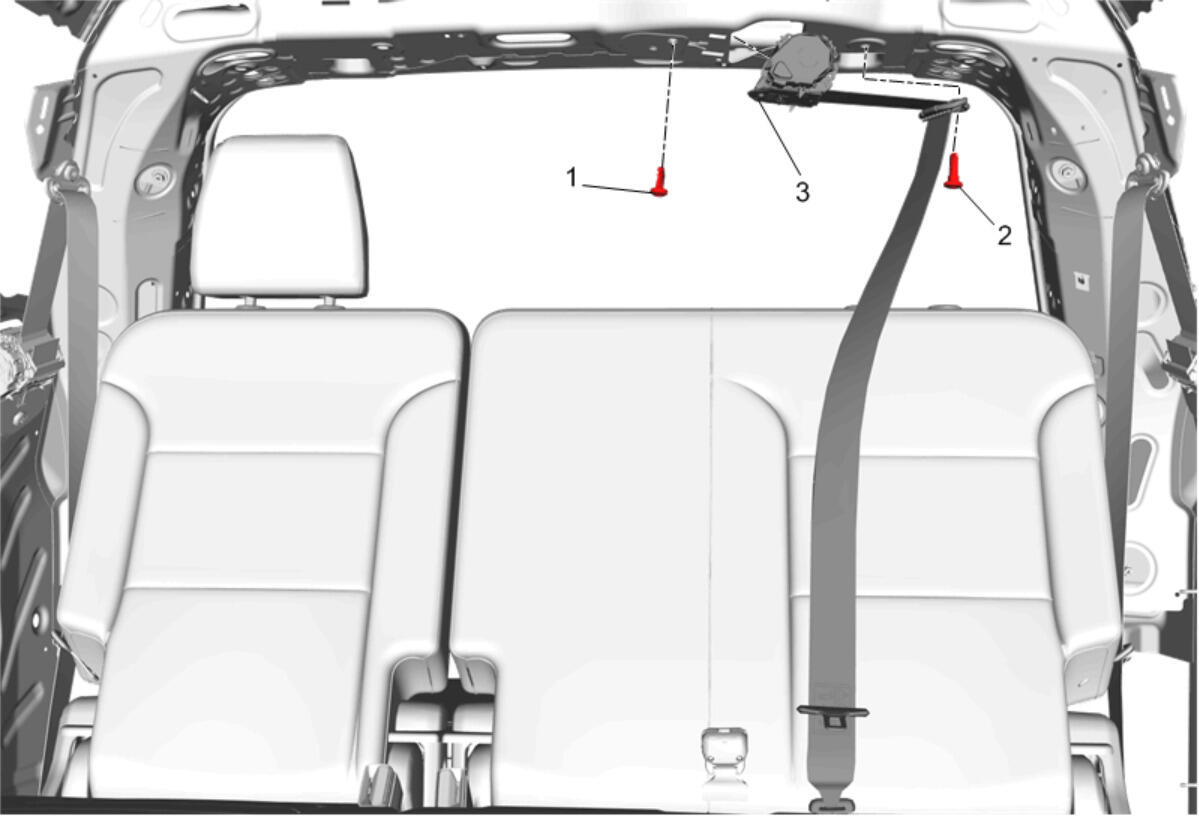

Callout	Component Name
Preliminary Procedure  Lower the headliner. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)
1	3rd Row Seat Belt Guide Bolt CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	3rd Row Seat Belt Retractor Bolt Remove the 3rd row rear seat belt retractor bolt. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: Remove any loose cured adhesive from the external threads of the component using a lint free cloth. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. Apply thread locking adhesive to the external threads of the component.Adhesives, Fluids, Lubricants, and Sealers   Ensure there are no gaps in the thread locking adhesive once applied to the component. Tighten  45 N.m (33 lb ft)
3	3rd Row Center Seat Belt Retractor Procedure  Release the mini buckle.
