Removal Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5415005Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Removal and Installation

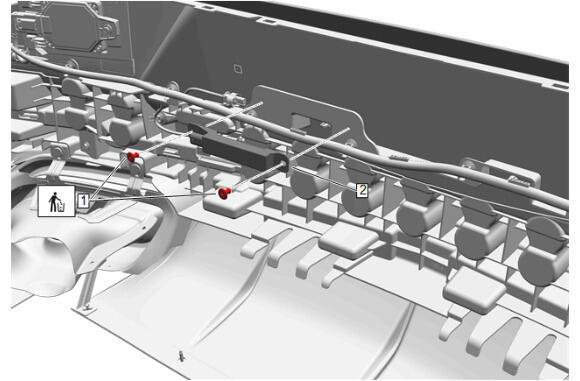

  2. GM5484115Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Eye Protection Warning .

    Drill out the 2 low frequency rear bumper antenna rivets. Remove and DISCARD

  3. Disconnect the electrical connector.
  4. Low Frequency Rear Bumper Antenna (2) - Remove
