Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

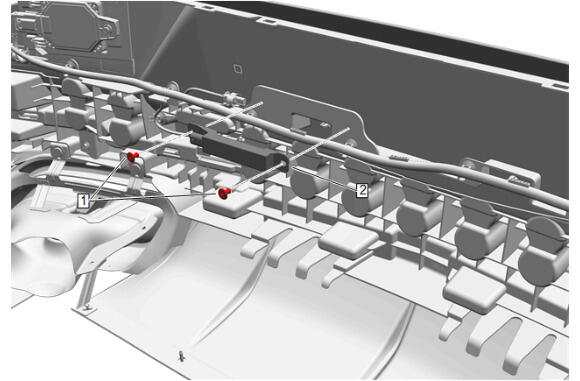

  1. GM5484117Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Rear Bumper Antenna (2) - Install

  2. Install NEW rivets. (1) [ 2x ]
  3. Connect the electrical connector.
  4. GM5415005Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
