Removal Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector Bolt (1) - Remove [5x]
Front Bumper Fascia Air Deflector Retainer (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Remove
Front Compartment Air Deflector Retainer (2) - Remove [2x]
Engine Front Splash Shield Bolt (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (3) - Remove
Front Compartment Air Deflector Retainer (2) - Remove [2x]
Engine Front Splash Shield Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector Bolt (1) - Remove [4x]
Front Compartment Air Deflector (2) - Remove
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

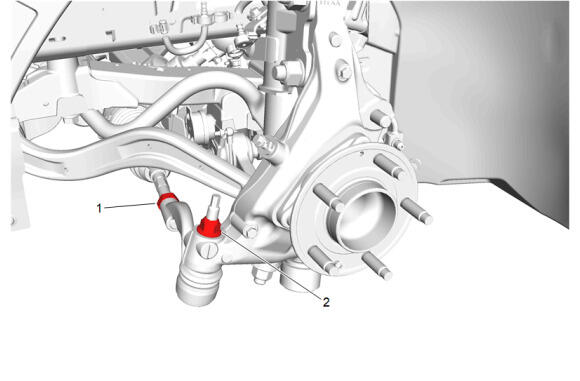

Steering Linkage Inner Tie Rod Nut (1) - Loosen
Steering Linkage Outer Tie Rod Nut (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

NOTE:
Some components not shown for graphic clarity.

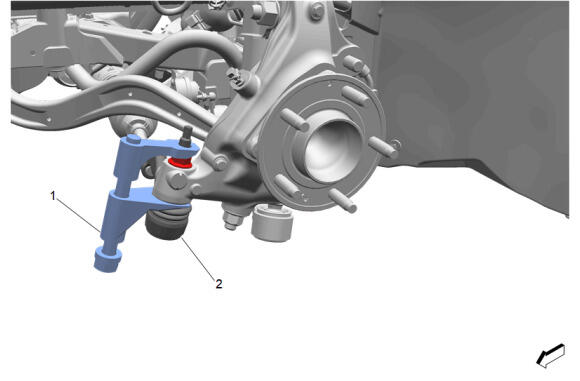

Using the CH-42188-B Ball Joint Separator (1) separate the steering linkage outer tie rod (2) from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Outer Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Outer Tie Rod (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Inner Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

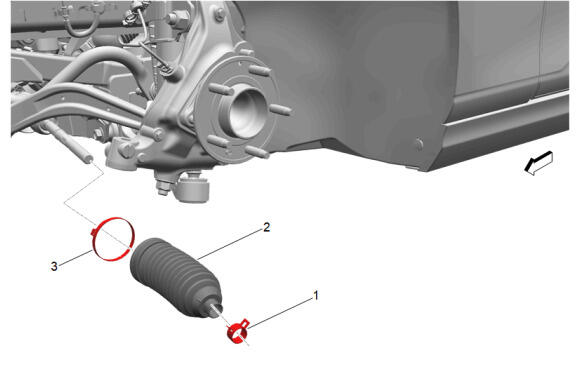

Steering Gear Boot Outer Clamp (1) - Remove
Steering Gear Boot Inner Clamp (3) - Remove and DISCARD
Steering Gear Boot (2) - Remove
