Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

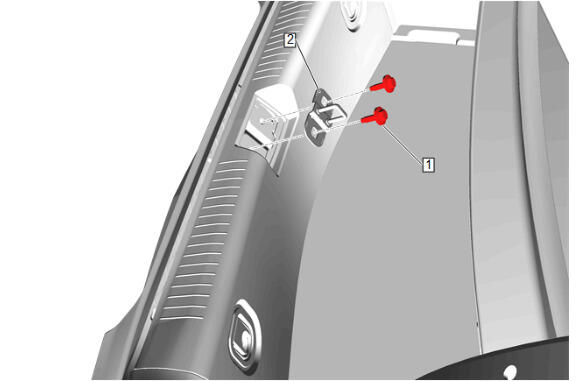

  1. GM5483625Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Lid Latch Striker (2) - Install

  2. Rear Compartment Lid Latch Striker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  3. GM5459293Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel Opening Cover (1) - Install
