Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

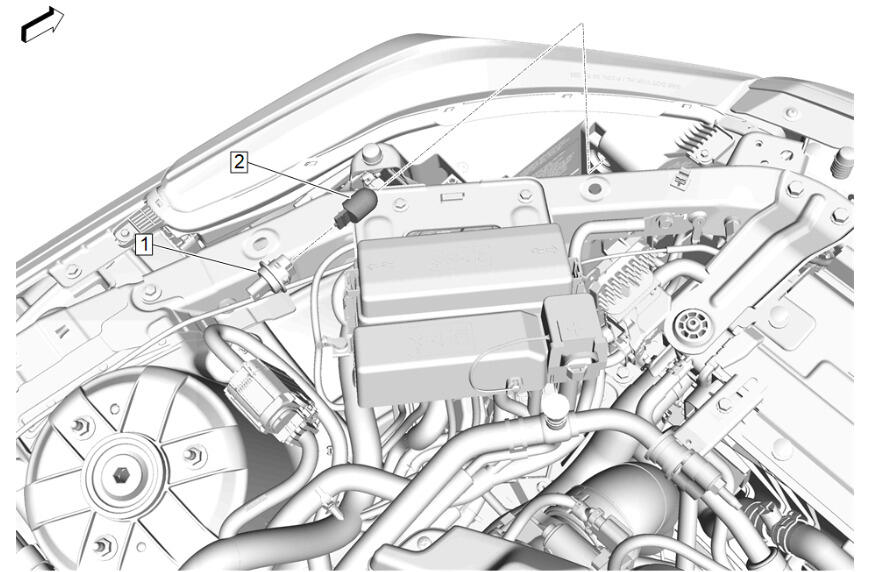

Install the turn signal bulb (2) straight into the signal bulb socket (1).
- Turn Signal Bulb Socket (1) - Install
 Courtesy of GENERAL MOTORS COMPANY
|

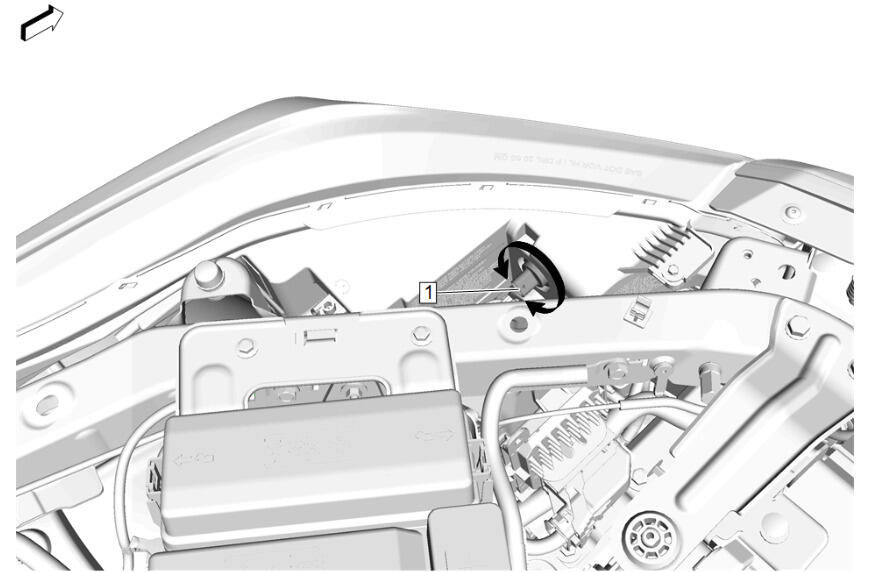

Rotate the turn signal bulb socket (1) a quarter turn clockwise to engage.
- Connect the electrical connector.
- Close the hood.
