Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

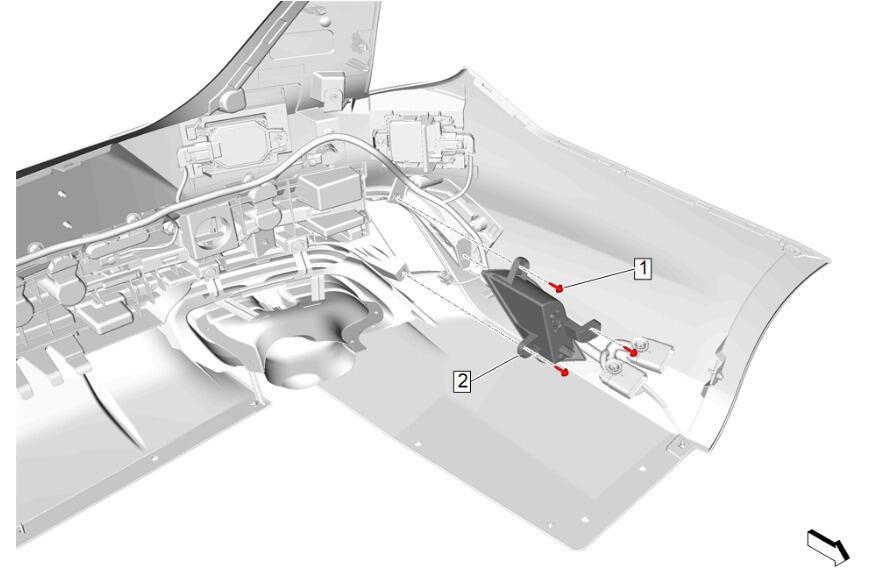

Rear Fascia Lower Signal Lamp (2) - Install
- Rear Fascia Lower Signal Lamp Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the electrical connector.
Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
CAUTION:
Refer to Fastener Caution .
