Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

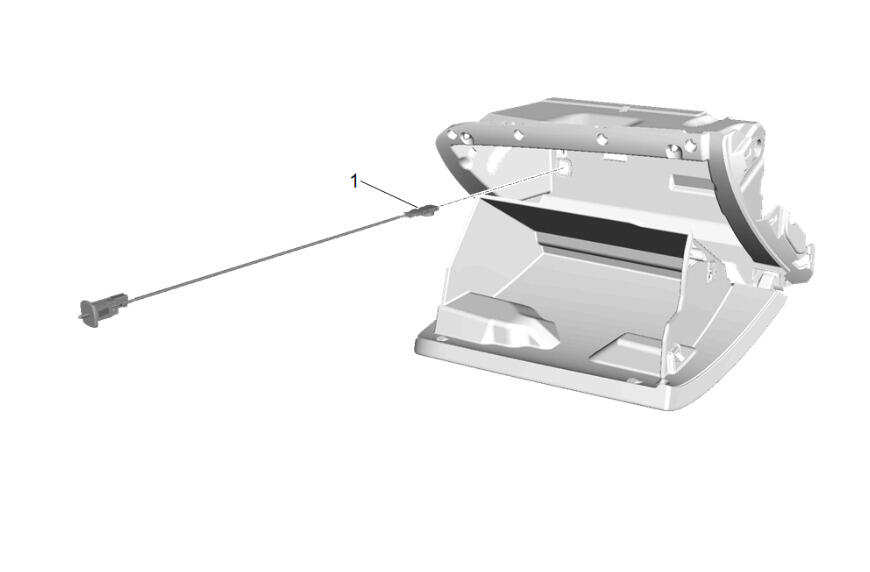

  1. GM5448260Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Lamp (1) - Install

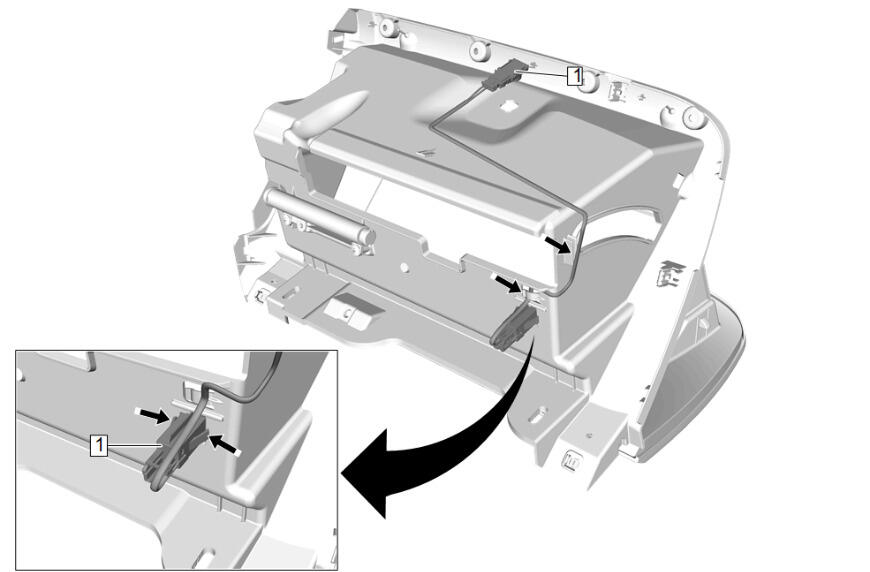

  2. GM5448257Courtesy of GENERAL MOTORS COMPANY

    Ensure the retaining tabs at the rear of the instrument panel compartment lamp (1) have fully secured.

  3. Secure the wiring harness to the side and rear retaining tabs.

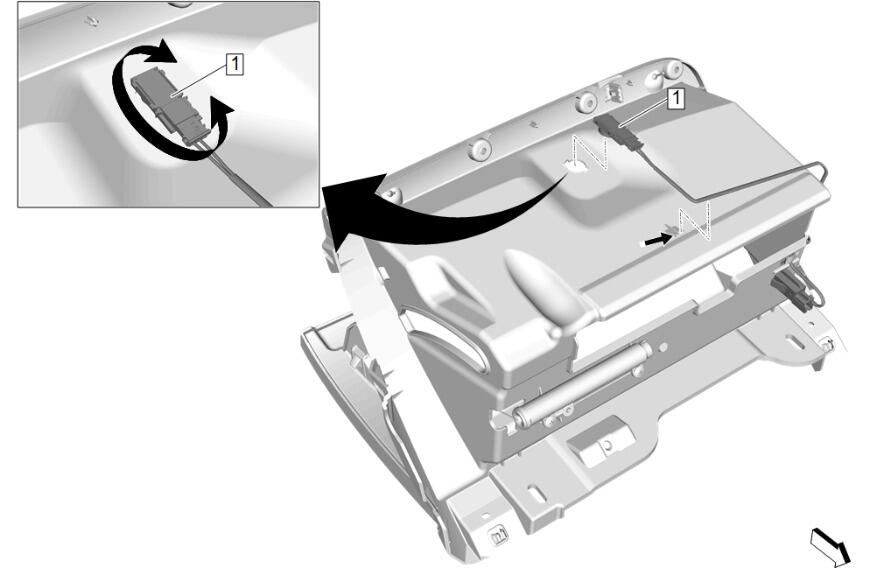

  4. GM5448256Courtesy of GENERAL MOTORS COMPANY

    Secure the wiring harness to the upper retaining tab.

  5. Place the instrument panel compartment lamp (1) in position and rotate a quarter turn clockwise to secure.

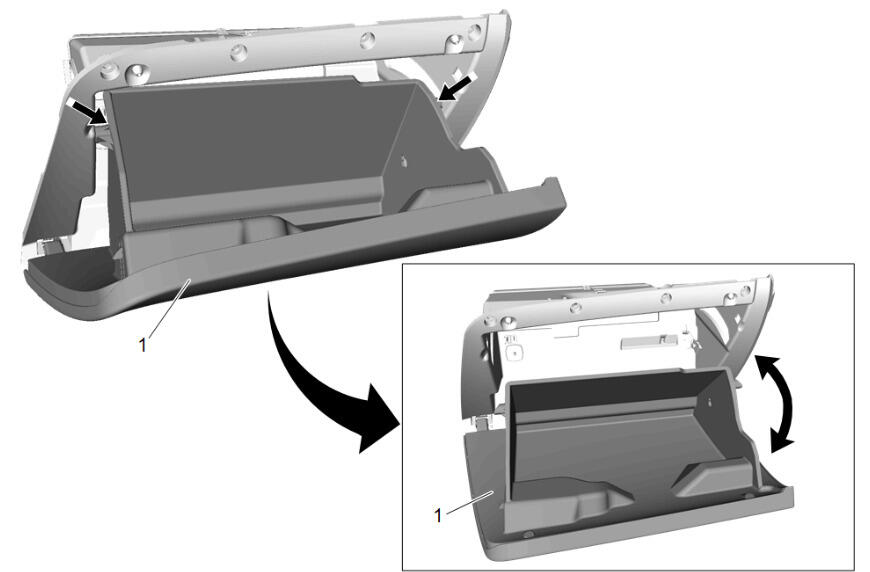

  6. GM5448254Courtesy of GENERAL MOTORS COMPANY

    Rotate the instrument panel compartment door (1) towards the closed position until the side retaining tabs have full secured.

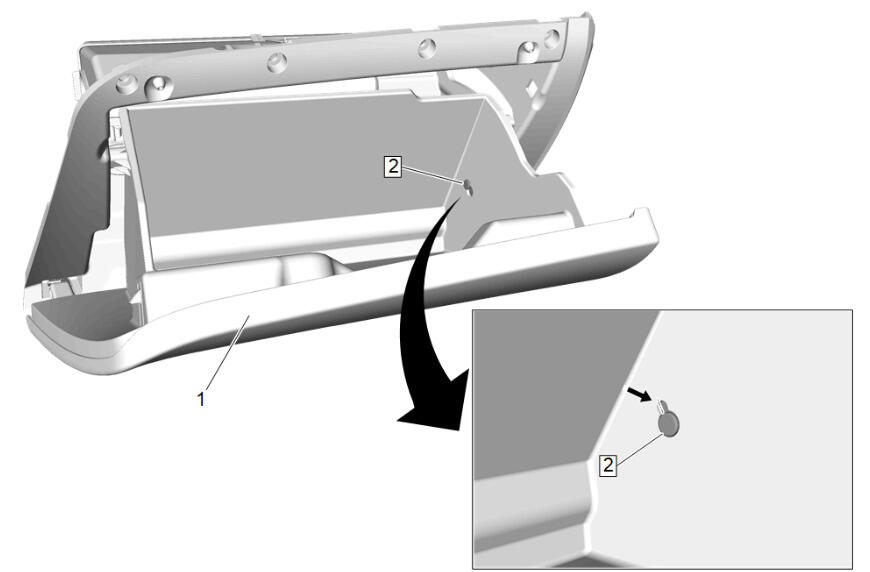

  7. GM5448250Courtesy of GENERAL MOTORS COMPANY

    With the instrument panel compartment door (1) open, engage the instrument panel compartment dampener tab (2) and ensure it has fully seated.

  8. Connect the electrical connectors.
  9. GM5423237Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install

  10. GM5423236Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] Fastener Specifications

  11. GM5443248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  12. Instrument Panel Lower Airbag - Passenger Side (2) - Install
  13. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] Fastener Specifications
  14. Connect the electrical connectors.
  15. GM5312734Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (1) - Install

  16. Install the tab into the instrument panel lower trim panel insulator (1).
  17. GM5312733Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Insulator Bolt (2) - Install and tighten [4x] - Fastener Specifications

  18. Connect and position the wiring harness.
  19. GM5312731Courtesy of GENERAL MOTORS COMPANY

    Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.

  20. Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
  21. GM5421737Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install

  22. Enable the SIR System. SIR Disabling and Enabling .
