Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Connect all electrical connectors.

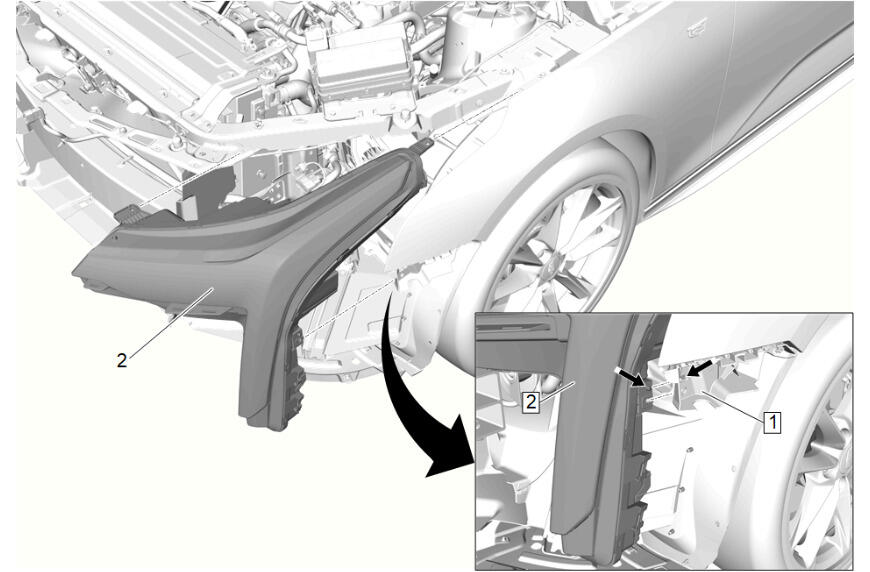

- Front Headlamp (2) - Install
- Secure the front headlamp guide pin to the front bumper fascia guide (1).

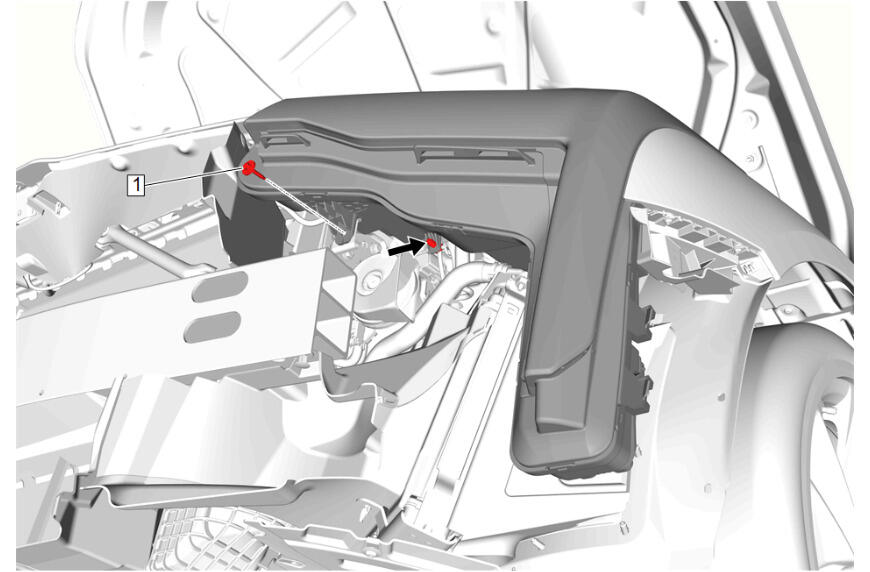

Secure the wiring harness retaining tab, if equipped.
- Headlamp Bolt (1) - Install and tighten - Fastener Specifications

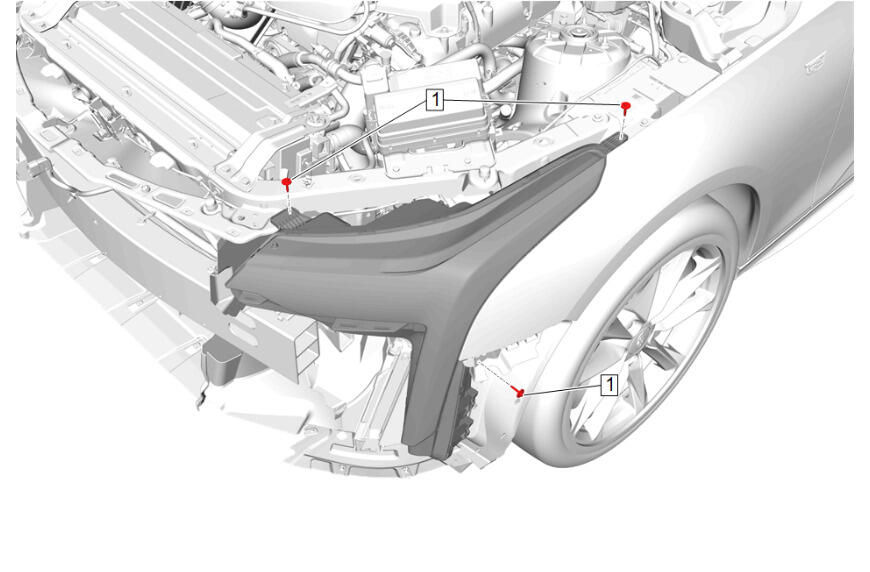

Headlamp Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
- After installation, aim the front headlamps. Front Headlamp Aiming (with Horizontal Adjustment) Front Headlamp Aiming (without Horizontal Adjustment)
CAUTION:
Refer to Fastener Caution .
