Removal Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper Arm (3) - Remove [ 2x ]
1. Using the appropriate trim tool, remove the windshield wiper arm finish cap (1) from the windshield wiper arm (3).
2. Windshield Wiper Arm Nut (2) - Remove
3. Grasp the outer end of the windshield wiper arm (3) and gently rock the arm back and forth to remove it from the windshield wiper transmission pivot shaft.
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Extension (1) - Remove [ 2x ]
1. Apply two layers of masking tape around the top edge of the service part to prevent paint damage.
2. Using a suitable plastic trim tool, carefully release the air inlet grille panel extension clips.
3. Remove the air inlet grille panel extension (1) from the air inlet grille panel and upper front fender.
Courtesy of GENERAL MOTORS COMPANY

Hood Rear Outer Air Inlet Seal (2) - Remove [ 2x ]
1. Hood Rear Outer Air Inlet Seal Retainer (1) - Remove
2. Hood Rear Outer Air Inlet Seal (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel (2) - Remove
1. Air Inlet Grille Panel Retainer (1) - Remove [ 6x ]
2. Disconnect the windshield washer nozzle hose from the windshield washer pump hose.
3. Lift the front edge of the air inlet grille panel (2) and slide the panel forward from both hood hinges to remove.
Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper System Module Shield (1) - Remove

NOTE:

To prevent erroneous DTC's, disconnect the battery negative cable before disconnecting the windshield wiper motor electrical connector.

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Courtesy of GENERAL MOTORS COMPANY

Disconnect the windshield wiper motor electrical connector.
Windshield Wiper System Module Bolt (1) - Remove [ 2x ]
Slide the windshield wiper system module (2) inboard to release the grommet from the plenum and remove the windshield wiper system module from the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Carrier (1) - Remove - Instrument Panel Carrier Replacement (without Head Up Display)Instrument Panel Carrier Replacement (with Head Up Display)
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct Bolt (1) - Remove
Floor Front Air Outlet Duct - Left Side Outer (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Typical wiring harness shown. Individual wiring harnesses may differ based on option content.

Disconnect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

Disconnect and reposition harness as necessary.
Loosen the fastener and slide the bracket out of the keyhole slot. (1)
Serial Data Gateway Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Brace Bolt (1) - Remove [ 3x ]
Instrument Panel Knee Bolster Deflector (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet Duct Bolt (1) - Remove [ 3x ]
Unclip the harness from the instrument panel center air outlet duct.
Courtesy of GENERAL MOTORS COMPANY

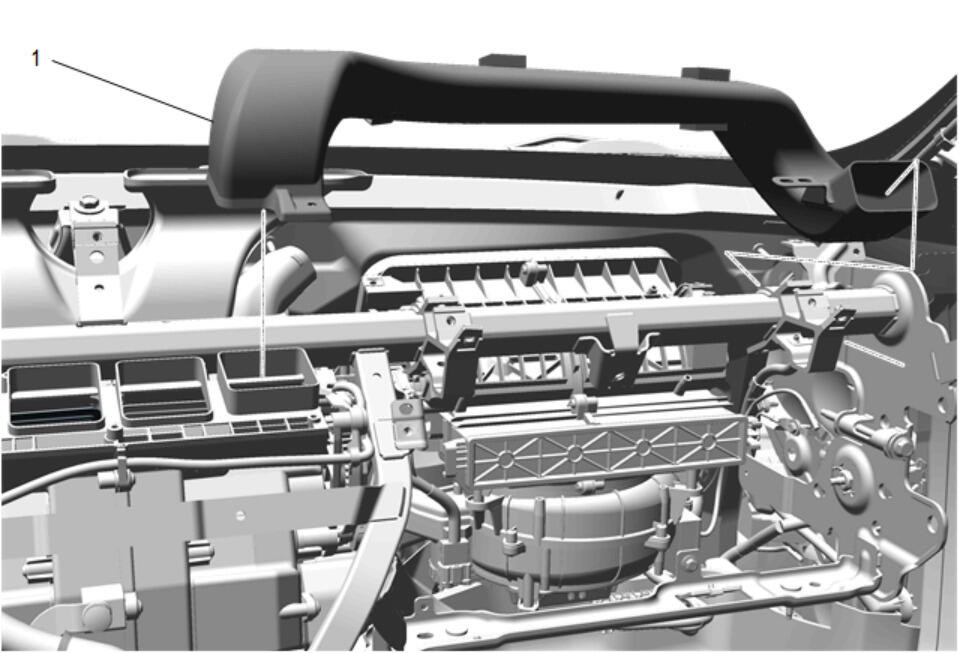

Instrument Panel Center Air Outlet Duct (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Duct - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet Duct Bolt (1) - Remove [ 2x ]
Instrument Panel Center Air Outlet Duct Bolt-Torx (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Air Outlet Inner Duct - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Duct - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet Duct Bolt-Torx (1) - Remove
Instrument Panel Center Air Outlet Duct Bolt (2) - Remove [ 2x ]
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Air Outlet Inner Duct - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Brace Bolt (1) - Remove [ 3x ]
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Bolt (1) - Remove [ 4x ]
Front Compartment Fuse Block Bolt (2) - Remove [ 2x ]
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Bolt (1) - Remove [ 4x ]
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Bolt (1) - Remove
Heater and Air Conditioning Evaporator and Blower Module Bolt (2) - Remove [ 6x ]
Note the location and routing of the instrument panel wiring harness prior to removal to ensure proper installation.
Disconnect the wiring harness from the instrument panel tie bar assembly.
Support the HVAC module in order to prevent damage.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, remove the instrument panel tie bar assembly from the vehicle. (1)
Courtesy of GENERAL MOTORS COMPANY

Radio Bracket Bolt (1) - Remove
Loosen the two radio bracket bolts (2), but do NOT remove.
Remove the radio bracket (3) by sliding the bracket out of the keyhole slot.
