Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

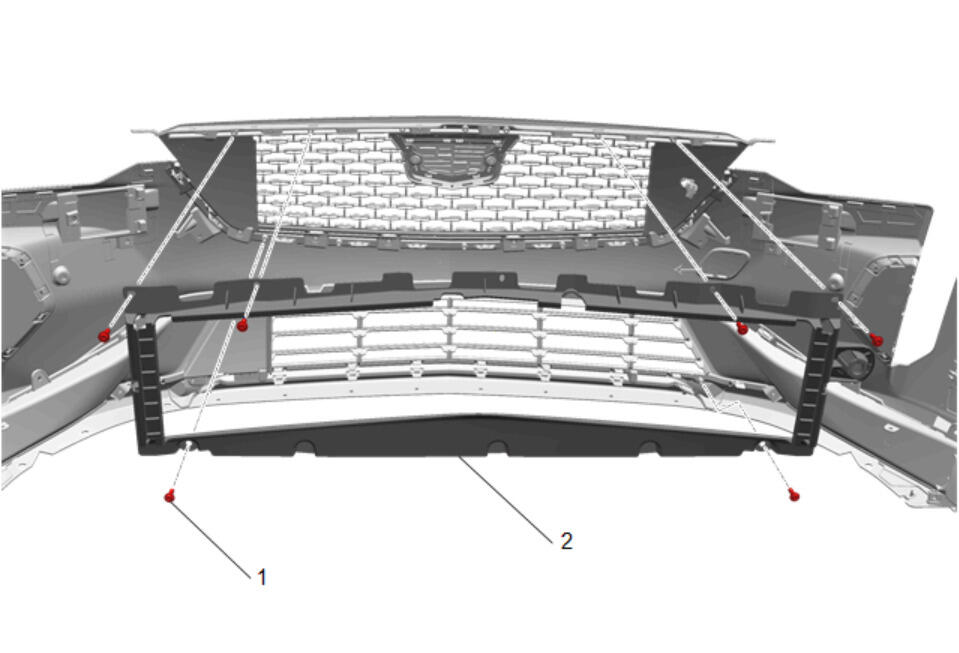

Front Bumper Shutter Frame (2) - Install
- Front Bumper Shutter Bolt (1) - Install [ 6x ] - Fastener Specifications
- Connect the electrical connector.
Front Bumper Fascia Energy Absorber (1) - Install
- Install the wiring harness.
Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
CAUTION:
Refer to Fastener Caution .
