Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

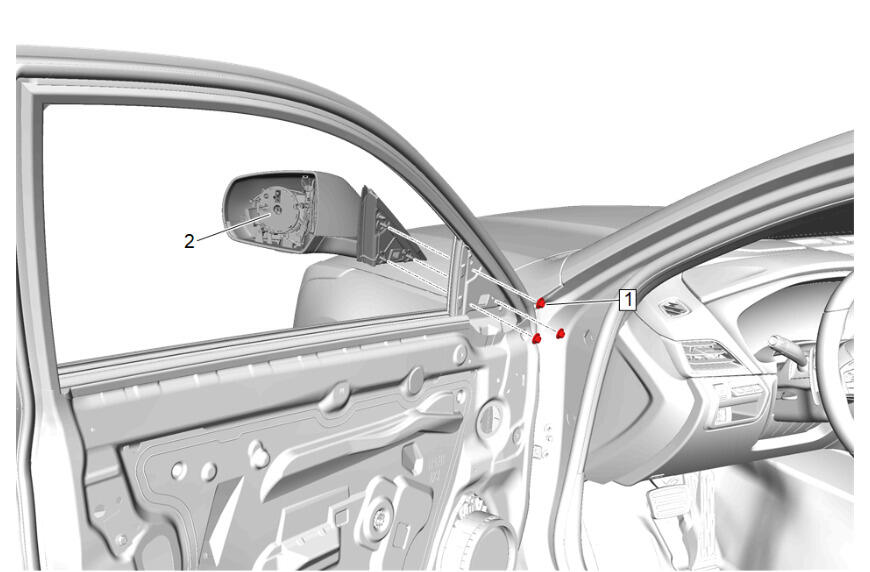

Outside Rearview Mirror Housing (2) - Install
- Outside Rearview Mirror Nut (1) - Install and tighten [ 3x ] - Fastener Specifications
- Connect all electrical connectors.
Ensure that the door weatherstrip is not trapped below the window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.
- Front Side Door Window Garnish Molding (2) - Install
- Front Side Door Window Garnish Molding Retainer (1) - Install [ 2x ]
Front Side Door Trim (4) - Install - Front Side Door Trim Removal and Installation
Connect the electrical connectors.
- Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).
Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass retainers secure to the outside rearview mirror actuator (2).
- Remove the masking tape from the outside rearview mirror glass (1).
- Inspect the outside rearview mirror for proper operation.
CAUTION:
Refer to Fastener Caution .
