Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Glass and Sheet Metal Handling Warning .

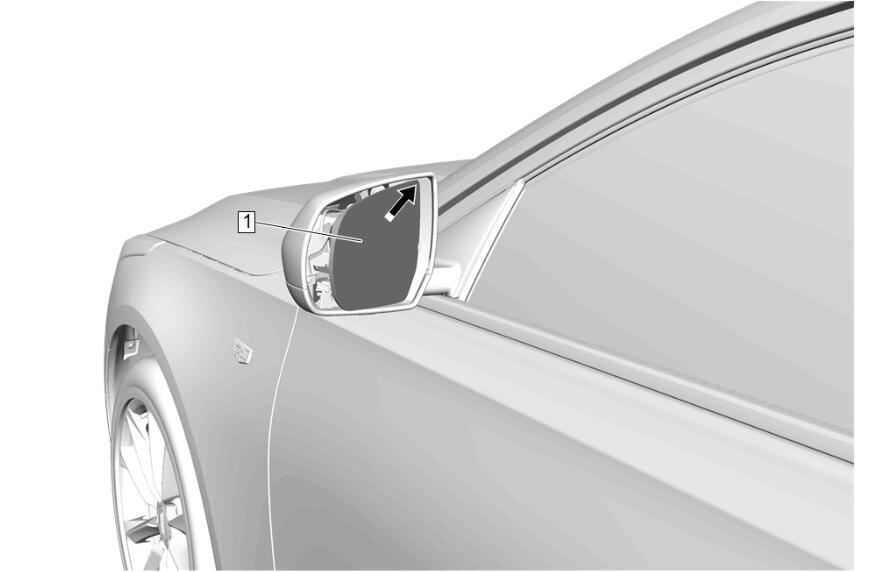

Apply masking tape over the outside rearview mirror glass (1).
Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).
Retaining pressure on the outside rearview mirror glass (1), pull outward until the outside rearview mirror glass is released from the outside rearview mirror actuator (2).
- Disconnect all electrical connectors.
