Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

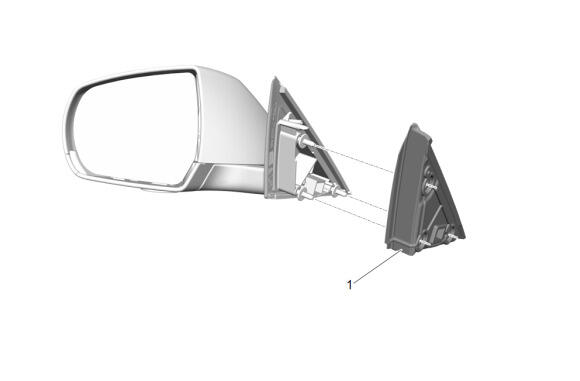

Outside Rearview Mirror Gasket (1) - Install
Outside Rearview Mirror Housing (2) - Install
- Outside Rearview Mirror Nut (1) - Install and tighten [ 3x ] - Fastener Specifications
- Connect all electrical connectors.
Ensure that the door weatherstrip is not trapped below the window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.
- Front Side Door Window Garnish Molding (2) - Install
- Front Side Door Window Garnish Molding Retainer (1) - Install [ 2x ]
Front Side Door Trim (4) - Install - Front Side Door Trim Removal and Installation
