Installation Procedure

Using a suitable jack stand support the driveline torque tube.
Courtesy of GENERAL MOTORS COMPANY

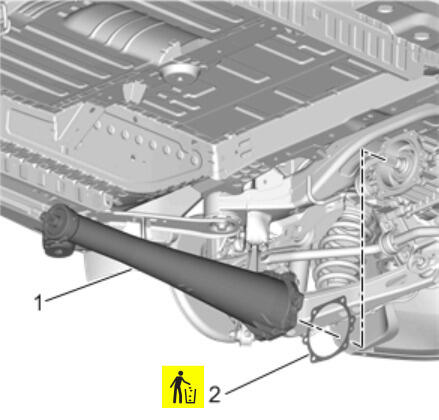

Install the driveline torque tube (1) and the NEW gasket (2) to the differential carrier.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The driveline torque tube and differential carrier are balanced as an assembly. When re-using the original driveline torque tube it should be re-installed in the same position in relation the pinion splines.

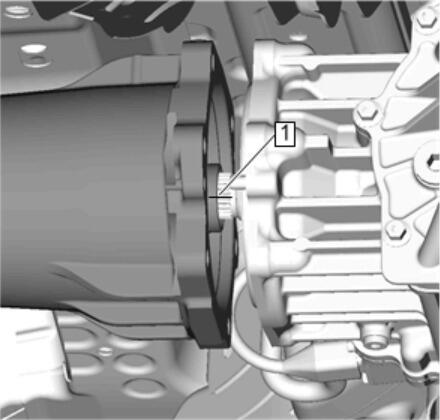

Ensure the driveline torque tube and pinion spline marks are aligned (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the bolts. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Install and hand tighten the driveline torque tube bolts (1) before torquing to specifications.
Tighten the driveline torque tube bolts (1) to 55 N.m (41 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Install the propeller shaft assembly (1). Two-Piece Propeller Shaft Replacement
Remove the support and lower the vehicle.
