3rd Row Seat Folding Switch Replacement

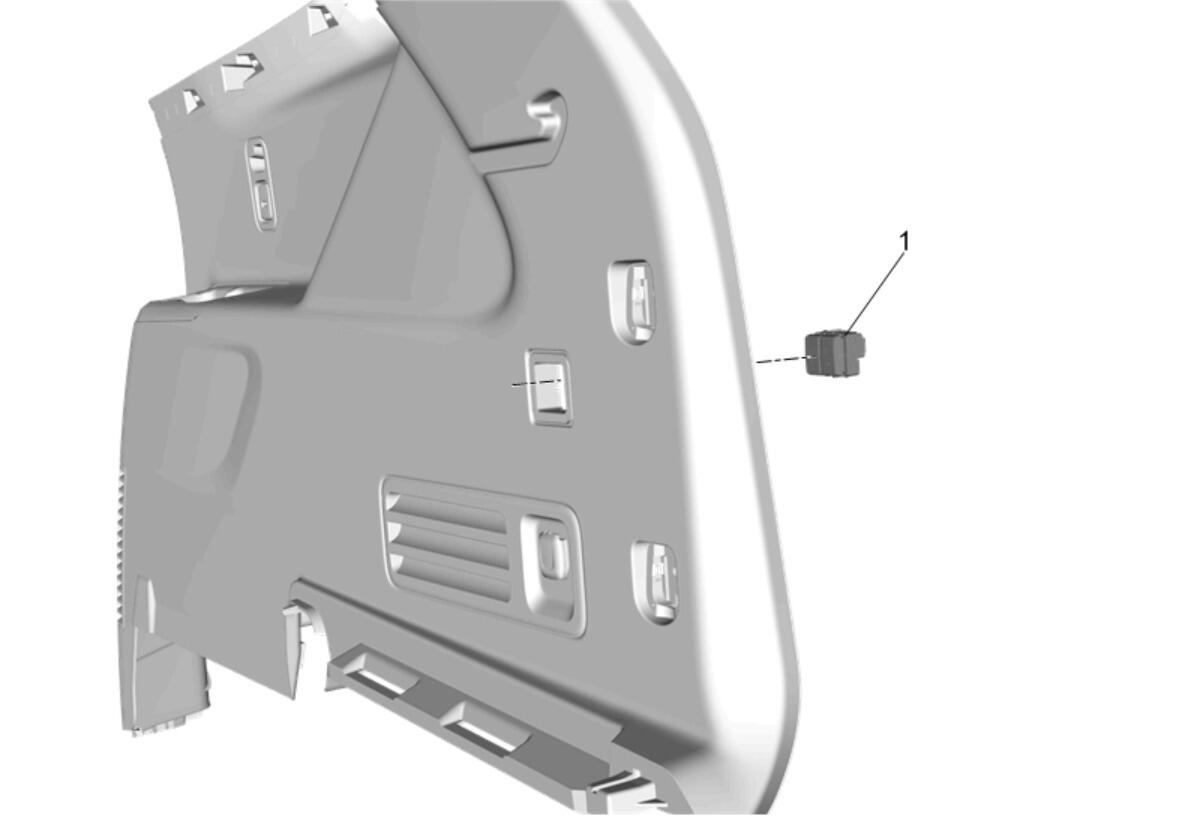

GM4758435Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)
1 3rd Row Seat Folding Switch

Procedure

  1. Use a plastic trim tool to release the switch from the trim panel.
  2. Disconnect the electrical connector.
