Removal Procedure

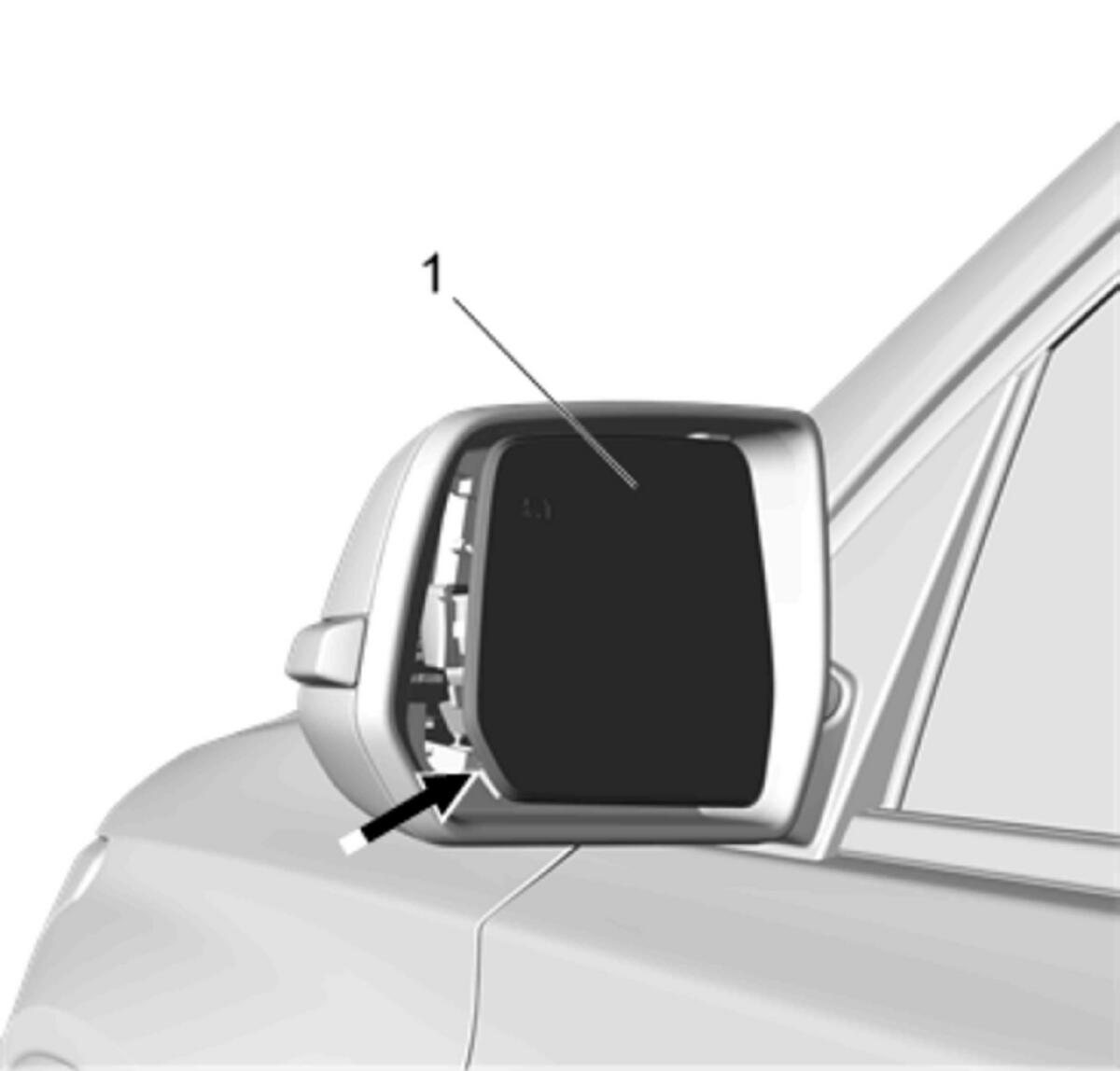

Place masking tape over the outside rearview mirror glass.(1)

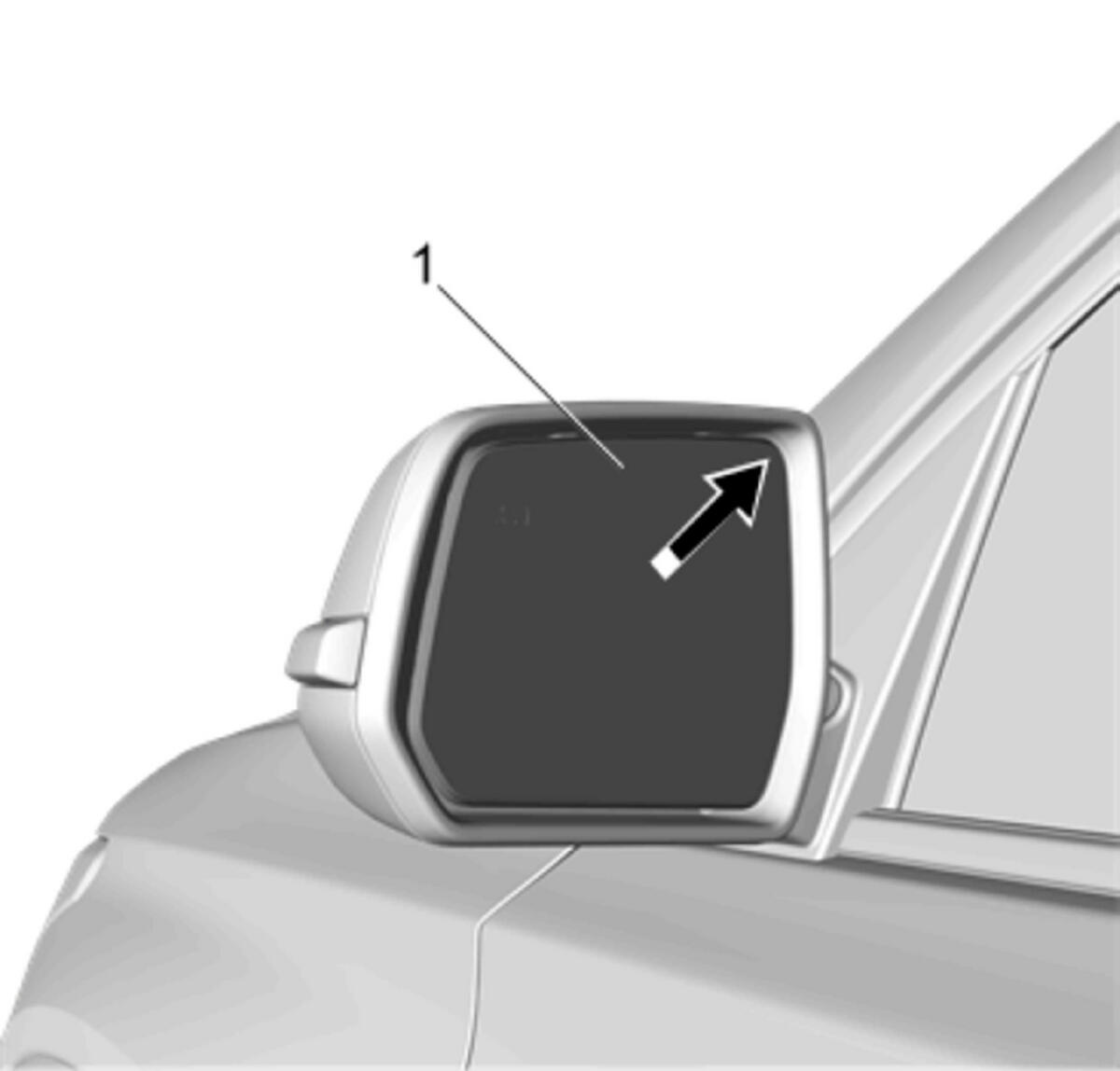

Carefully push the outside rearview mirror glass (1) upward and into the inside corner of the mirror housing.
Grasp the bottom edge of the outside rearview mirror glass firmly.(1)
lift up on the outside rearview mirror glass (1) and pull rearward until the outside rearview mirror glass retainers release from the actuator motor ring.(2)
- Disconnect the electrical connectors.
