Removal Procedure

  1. Front Wheel Bearing and Hub Assembly - Remove - Front Wheel Bearing and Hub Replacement

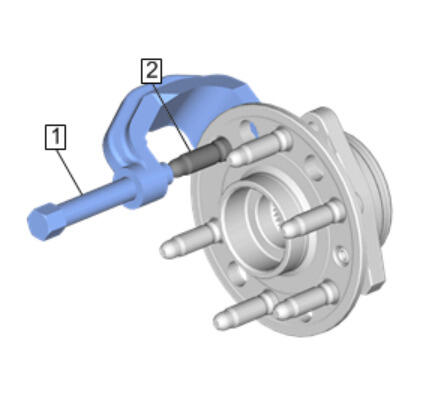

  2. GM4279813Courtesy of GENERAL MOTORS COMPANY

    Use the CH-43631  separator (1) to remove the wheel stud (2) from the flange on the hub assembly.

    DISCARD the stud.
