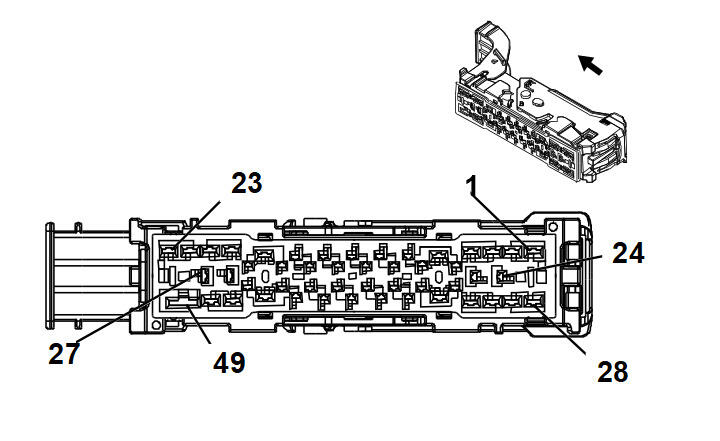

X53A Fuse Block - Rear Body X2
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13575832 | J-35616-4A (PU) | J-38125-11A |
| II | 13575835 | J-35616-42 (RD) | J-38125-11A |
| III | 13587516 | J-35616-4A (PU) | J-38125-11A |
| IV | 19332534 | J-35616-14 (GN) | J-38125-557 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 - 4 | - | - | - | Not Occupied | - | - |
| 5 | 0.5 0.35 |
RD / BN RD / BN |
4940 4940 |
Battery Positive Voltage Battery Positive Voltage |
IV IV |
(UGN)/(UEU+UKC-UGN) UEU-(UGN/UKC) |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.5 | RD / GY | 1740 | Battery Positive Voltage | IV | F48 |
| 8 | 0.35 | RD / WH | 1340 | Battery Positive Voltage | IV | TC2 |
| 9 | - | - | - | Not Occupied | - | - |
| 10 | 0.35 | RD / BU | 3940 | Battery Positive Voltage | IV | - |
| 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.35 | GY / VT | 3264 | Logistics Mode Relay Close Control | IV | - |
| 13 | 0.35 | VT / BU | 3263 | Logistics Mode Relay Open Control | IV | - |
| 14 | 0.35 | YE | 5704 | Endgate Latch Relay Coil Control | IV | - |
| 15 | - | - | - | Not Occupied | - | - |
| 16 | 0.75 | BU / WH | 6128 | Rear Closure Unlatch Actuator Unlatch Control | IV | - |
| 17 | 0.75 | RD / YE | 5040 | Battery Positive Voltage | IV | AL9+AT9 |
| 18 | 2.5 | RD / BU | 1842 | Battery Positive Voltage | III | - |
| 19 | - | - | - | Not Occupied | - | - |
| 20 | 1.5 | RD / BN | 4940 | Battery Positive Voltage | III | - |
| 21 | - | - | - | Not Occupied | - | - |
| 22 | 2.5 | RD / BU | 1542 | Battery Positive Voltage | III | F48 |
| 23 | 2.5 | RD / GY | 1740 | Battery Positive Voltage | III | - |
| 24 - 28 | - | - | - | Not Occupied | - | - |
| 29 | 1 | RD / WH | 4740 | Battery Positive Voltage | III | KA6 |
| 30 | 4 | RD / GN | 1540 | Battery Positive Voltage | I | TB5/TC2 |
| 31 | - | - | - | Not Occupied | - | - |
| 32 | 0.35 | VT | 1301 | Retained Accessory Power Control | IV | - |
| 33 | - | - | - | Not Occupied | - | - |
| 34 | 0.5 | BK | 2150 | Ground | IV | - |
| 35 | 0.35 | RD / WH | 2040 | Battery Positive Voltage | IV | - |
| 36 | - | - | - | Not Occupied | - | - |
| 37 | 1 | RD / GN | 5140 | Battery Positive Voltage | IV | (A2X+AAB)/HS1 |
| 38 | 0.35 | RD / YE | 4340 | Battery Positive Voltage | IV | - |
| 39 | - | - | - | Not Occupied | - | - |
| 40 | 0.35 | BN / VT | 193 | Rear Defogger Relay Control | IV | - |
| 41 | 0.35 | RD / VT | 1940 | Battery Positive Voltage | IV | - |
| 42 | - | - | - | Not Occupied | - | - |
| 43 | 0.35 | VT | 2401 | Retained Accessory Power Control | IV | - |
| 44 | - | - | - | Not Occupied | - | - |
| 45 | 2 | RD / BU | 1842 | Battery Positive Voltage | III | - |
| 46 | - | - | - | Not Occupied | - | - |
| 47 | 2.5 | RD / WH | 4042 | Battery Positive Voltage | III | - |
| 48 | 2.5 | RD / BU | 840 | Battery Positive Voltage | III | - |
| 49 | 3 | RD / GN | 742 | Battery Positive Voltage | II | V92 |
