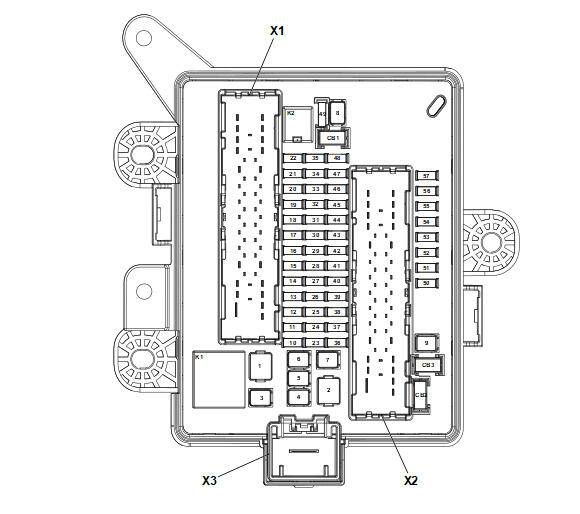

X53A Fuse Block - Rear Body Top View

GM4845716Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
Fuses
1 EMPTY F1RA -
  • Not Used
2 TRLR F2RA 30A
  • X88 Trailer Connector (V92)
3 SEAT RECL F3RA 30A
  • K169 Folding Seat Control Module - 3rd Row (AS8)
4 BLWR REAR F4RA 30A
  • K8A Blower Motor Control Module - Auxiliary
5 R/D CNTRL F5RA 30A
  • K47 Rear Differential Clutch Control Module (F48)
6 EMPTY F6RA -
  • Not Used
7 WNDW RT F7RA 30A
  • S79P Window Switch - Passenger
  • S79RR Window Switch - Right Rear
8 REAR DEFOG F8RA 30A
  • E18 Rear Defogger Grid
9 WNDW LT F9RA 30A
  • M35D Window Motor Module - Driver (-DR9)
  • S79D Window Switch - Driver (DR9)
  • S79LR Window Switch - Left Rear
10 EMPTY F10RA -
  • Not Used
11 TRLR BCK/UP F11RA 10A
  • X88 Trailer Connector (V92)
12 USB 3 F12RA 7.5
  • X92RL USB Receptacle - Rear Compartment Left
  • X92RR USB Receptacle - Rear Compartment Right
13 EMPTY F13RA -
  • Not Used
14 EMPTY F14RA -
  • Not Used
15 EMPTY F15RA -
  • Not Used
16 EMPTY F16RA -
  • Not Used
17 CAMERA F17RA 10A
  • B87 Rearview Camera (-UVH)
18 EMPTY F18RA -
  • Not Used
19 VENT SEAT F19RA 15A
  • M73A Seat Blower Motor - Driver Back (KU9)
  • M73B Seat Blower Motor - Passenger Back (KU9)
  • M73C Seat Blower Motor - Driver Cushion (KU9)
  • M73D Seat Blower Motor - Passenger Cushion (KU9)
20 EMPTY F20RA -
  • Not Used
21 EMPTY F21RA -
  • Not Used
22 EMPTY F22RA -
  • Not Used
23 EMPTY F23RA -
  • Not Used
24 LUMBAR F24RA 10A
  • S64D Seat Adjuster Switch - Driver (AHT)
  • S65P Seat Lumbar Support Switch - Passenger (AHT with AQ5)
25 EMPTY F25RA -
  • Not Used
26 TRLR BRK F26RA 30A
  • W24 Blunt Cut - Trailer Brakes Provision (V92)
27 EMPTY F27RA -
  • Not Used
28 PEPS F28RA 10A
  • K84 Keyless Entry Control Module
29 EMPTY F29RA -
  • Not Used
30 CNSTR VENT F30RA 10A
  • Q13 Evaporative Emission Vent Solenoid Valve (-CZ3)
31 EMPTY F31RA -
  • Not Used
32 HTD MIR F32RA 10A
  • KR4B Outside Rearview Mirror Heater Relay
33 USB 2 F33RA 7.5
  • X92C USB Receptacle - Center Console Rear
34 L/GATE MDL F34RA 10A
  • K39 Liftgate Control Module (TB5/TC2)
35 FSCM F35RA 20A
  • KR23A Fuel Pump Relay
  • K111 Fuel Pump Driver Control Module
36 EMPTY F36RA -
  • Not Used
37 EMPTY F37RA -
  • Not Used
38 WNDW MDL F38RA 10A
  • S79D Window Switch - Driver (-DR9)
39 REAR CLOSR F39RA 15A
  • Not Used
40 MSM F40RA 20A
  • K40 Seat Memory Control Module (AAB with AHT)
41 AOS F41RA 5A
  • K85 Passenger Presence Module
42 EMPTY F42RA -
  • Not Used
43 EMPTY F43RA -
  • Not Used
44 EMPTY F44RA -
  • Not Used
45 L/GATE MTR F45RA 30A
  • K39 Liftgate Control Module (TB5/TC2)
46 RR/HTD/SEAT F46RA 15A
  • K29R Seat Heating Control Module - Rear (KA6)
47 EMPTY F47RA -
  • Not Used
48 EMPTY F48RA -
  • Not Used
49 EMPTY F49RA -
  • Not Used
50 EMPTY F50RA -
  • Not Used
51 EMPTY F51RA -
  • Not Used
52 SADS F52RA 10A
  • K19 Suspension Control Module (F45)
  • K47 Rear Differential Clutch Control Module (F48)
53 EMPTY F53RA -
  • Not Used
54 EOCM SBZA F54RA 10A
  • B174W Frontview Camera - Windshield (UEU)
  • B218L Side Object Sensor Module - Left (UKC)
  • B218R Side Object Sensor Module - Right (UKC)
  • B233B Radar Sensor Module - Long Range (UGN)
  • K124 Active Safety Control Module (UGN)
55 EMPTY F55RA -
  • Not Used
56 UGDO/OVRHD CNSL F56RA 5A
  • A98 Front Overhead Console Assembly
  • E37M Dome/Reading Lamps - Middle
  • E37R Dome/Reading Lamps - Rear
  • S25 Garage Door Opener (UG1)
57 HFCLOSR RELSE F57RA 5A
  • K171 Hands-Free Liftgate Sensor Control Module
Circuit Breakers
CB1 EMPTY F1RB -
  • Not Used
CB2 EMPTY F2RB -
  • Not Used
CB3 APO REAR F3RB 15A
  • X80C Accessory Power Receptacle - Cargo
Relays
K1 EMPTY - -
  • Not Used
K2 EMPTY - -
  • Not Used
Important: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block.
- - KR4B Outside Rearview Mirror Heater Relay -
  • A9A Outside Rearview Mirror - Driver
  • A9B Outside Rearview Mirror - Passenger
  • E17D Outside Rearview Mirror Glass - Driver
  • E17P Outside Rearview Mirror Glass - Passenger
- - KR5 Rear Defogger Relay -
  • F8RA Fuse
  • F48RA Fuse
- - KR61 Trailer Backup Lamps Relay -
  • F11RA Fuse (V92)
- - KR95A Liftgate Unlatch Relay -
  • M30 Liftgate Latch
- - KR104B Battery Saver Relay 2 -
  • F52RA Fuse
  • F54RA Fuse
  • F56RA Fuse
  • F57RA Fuse
- - KR114 Door Dead Lock Relay -
  • Not Used
- - KR124 Trailer Ignition Power Relay -
  • F21RA Fuse
- - KR132 Fuel Fill Door Lock Relay -
  • M97 Fuel Fill Door Lock Actuator (N08)
Important: Items listed below are diagnostic testing points.
TP1 TEST POINT CKT 6800 TP1 -
  • KR132 Fuel Fill Door Lock Relay
TP2 TEST POINT CKT 5911 TP2 -
  • KR132 Fuel Fill Door Lock Relay
TP3 TEST POINT CKT - TP3 -
  • KR114 Door Dead Lock Relay
TP4 TEST POINT CKT - TP4 -
  • KR114 Door Dead Lock Relay
TP5 TEST POINT CKT 2267 TP5 -
  • KR4B Outside Rearview Mirror Heater Relay
TP6 TEST POINT CKT - TP6 -
  • KR4B Outside Rearview Mirror Heater Relay
TP7 TEST POINT CKT 1093 TP7 -
  • KR4B Outside Rearview Mirror Heater Relay
TP8 TEST POINT CKT - TP8 -
  • Not Used
TP9 TEST POINT CKT - TP9 -
  • Not Used
