Power Transfer Unit Extension Housing Removal
WARNING: This page is about a different variant/trim than selected.
Power Transfer Unit Extension Housing Removal

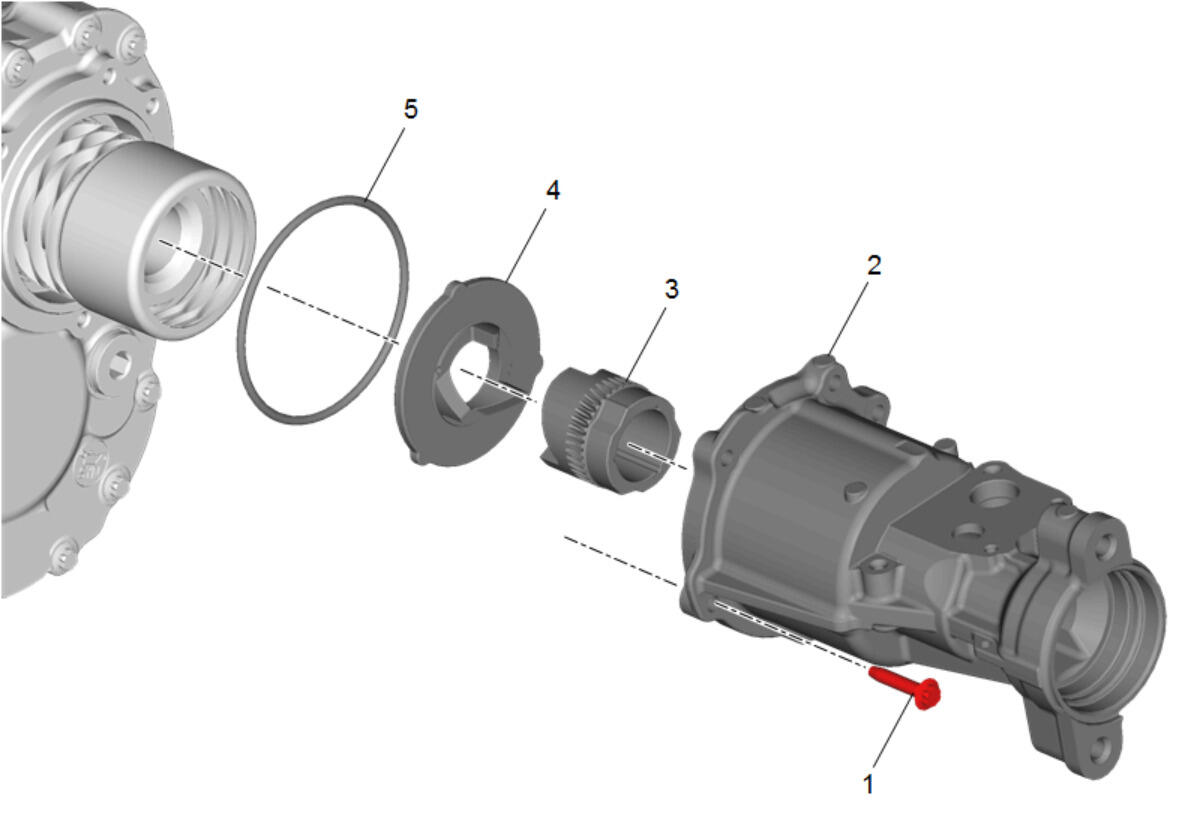

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Extension Housing Bolt[ 5x ] |
| 2 | Power Transfer Unit Extension Housing Power Transfer Unit Case Cleaning and Inspection |
| 3 | Power Transfer Disconnect Rotary Cam |
| 4 | Power Transfer Disconnect Linear Cam |
| 5 | Extension Housing Cover Seal - O-Ring Procedure Remove and DISCARD the seal. |
