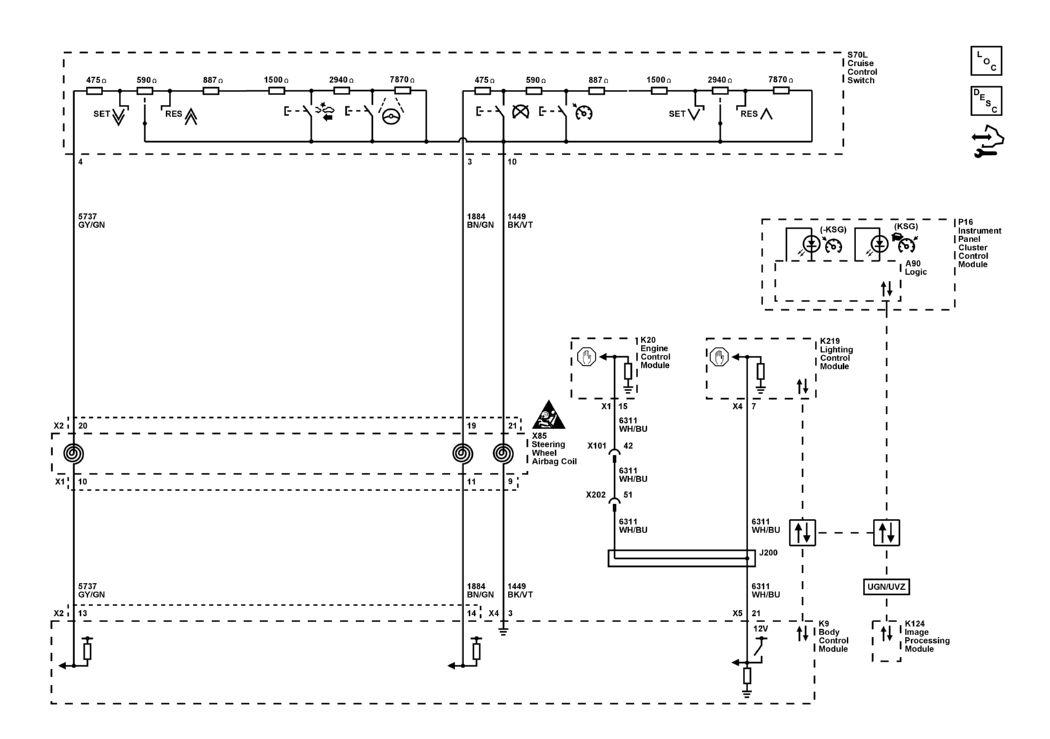

Cruise Control

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5391879Courtesy of GENERAL MOTORS COMPANY
