Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

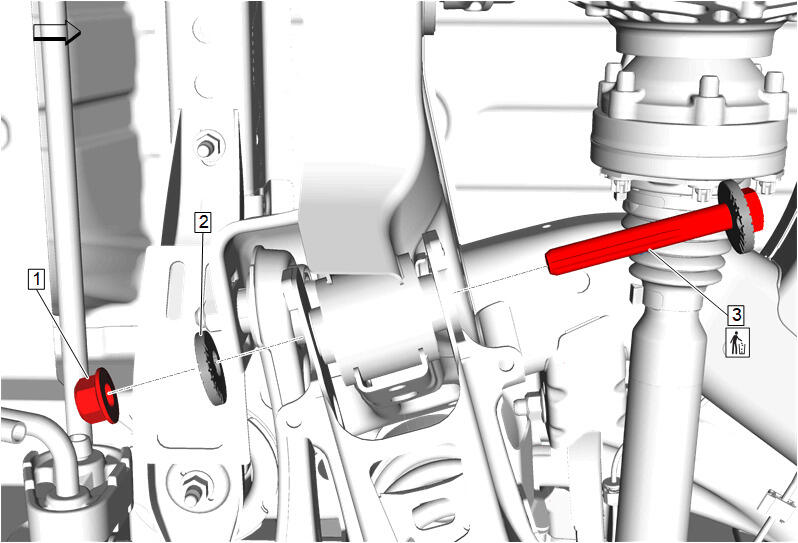

Rear Suspension Lower Control Arm Inner Bolt(3) - Install NEW
- Rear Suspension Lower Control Arm Inner Washer(2) - Install
- Rear Suspension Lower Control Arm Inner Nut(1) - Install, but do NOT tighten

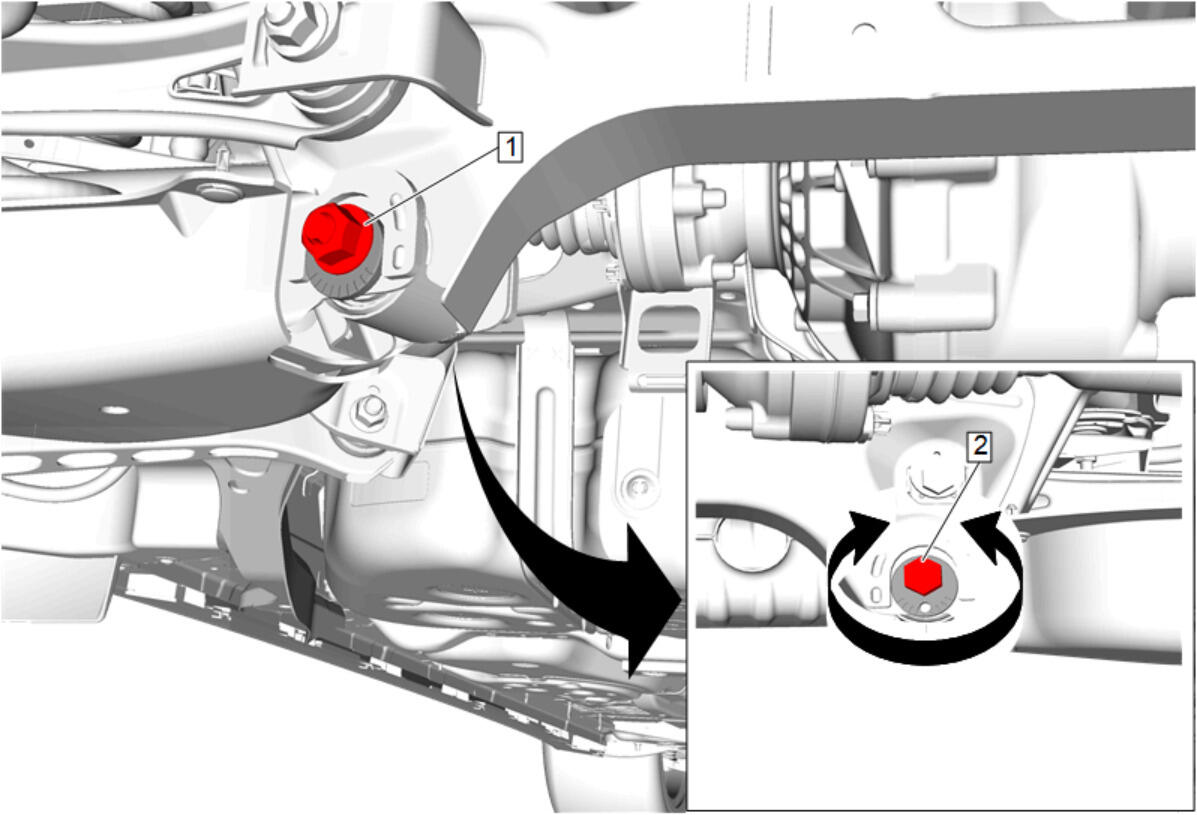

Rotate the rear suspension lower control arm inner bolt (2) as necessary to achieve the correct rear camber setting.
- Tighten the rear suspension lower control arm inner nut (1) only enough to prevent the loss of the rear camber setting.
- Verify the rear camber measurement, readjust if necessary.
- Rear Suspension Lower Control Arm Inner Nut(1) - Tighten - Fastener Specifications
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
