Adjustment Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before performing any adjustment affecting the wheel alignment, refer to Wheel Alignment Measurement .
    NOTE:

    Service bolt is available for the lower strut to steering knuckle position. Do not attempt to file on the strut to make camber adjustment. The service bolt is approximately 2 mm smaller in diameter to allow adjustment. Refer to the electronic parts catalog for proper application.

  2. GM5051185Courtesy of GENERAL MOTORS COMPANY

    Determine the actual camber (1), Positive (+) or Negative (-).

  3. Raise the front of the vehicle. Follow alignment machine instructions.
  4. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
  5. Follow alignment machine instructions.

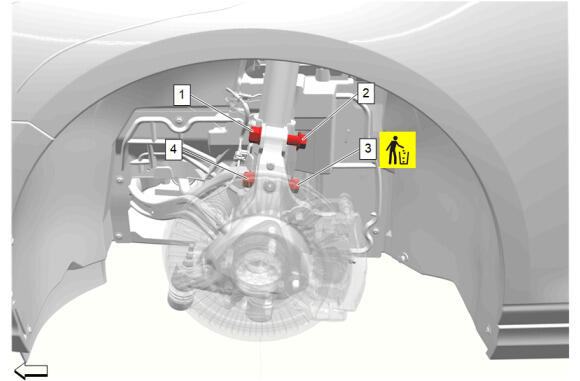

  6. GM5806617Courtesy of GENERAL MOTORS COMPANY

    Loosen the upper steering knuckle nut (1) enough to allow the splines of the steering knuckle bolt (2) to disengage from the steering knuckle.

  7. Remove the lower steering knuckle nut (3) and steering knuckle bolt (4) and DISCARD the steering knuckle bolt.
  8. Install service bolt to lower strut to steering knuckle. Do not fully tighten.
  9. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
    10. NOTE:

    For accurate readings, do not push or pull on the tire and wheel assembly during the alignment.

  10. Adjust the front camber to specifications. Wheel Alignment Measurement
  11. GM5806617Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The next step may require assistance.

    Hold the camber adjustment and tighten the bottom steering knuckle nut (3) while holding the steering knuckle bolt (4) to secure the adjustment. Do not fully torque at this time. Also make sure that the spline of the bolt is fully seated within the knuckle and strut.

  12. Lower the front wheels. Follow alignment machine instructions.
  13. Re-inspect the camber settings.
    14. CAUTION:

    Refer to Fastener Caution .

  14. Steering Knuckle Nut(1) - Tighten - Strut Assembly Removal and Installation (FE2, FE3 without F55)Strut Assembly Removal and Installation (FE3 with F55)
  15. Steering Knuckle Nut(3) - Tighten - Strut Assembly Removal and Installation (FE2, FE3 without F55)Strut Assembly Removal and Installation (FE3 with F55)
  16. When the camber is within specifications, adjust the toe.

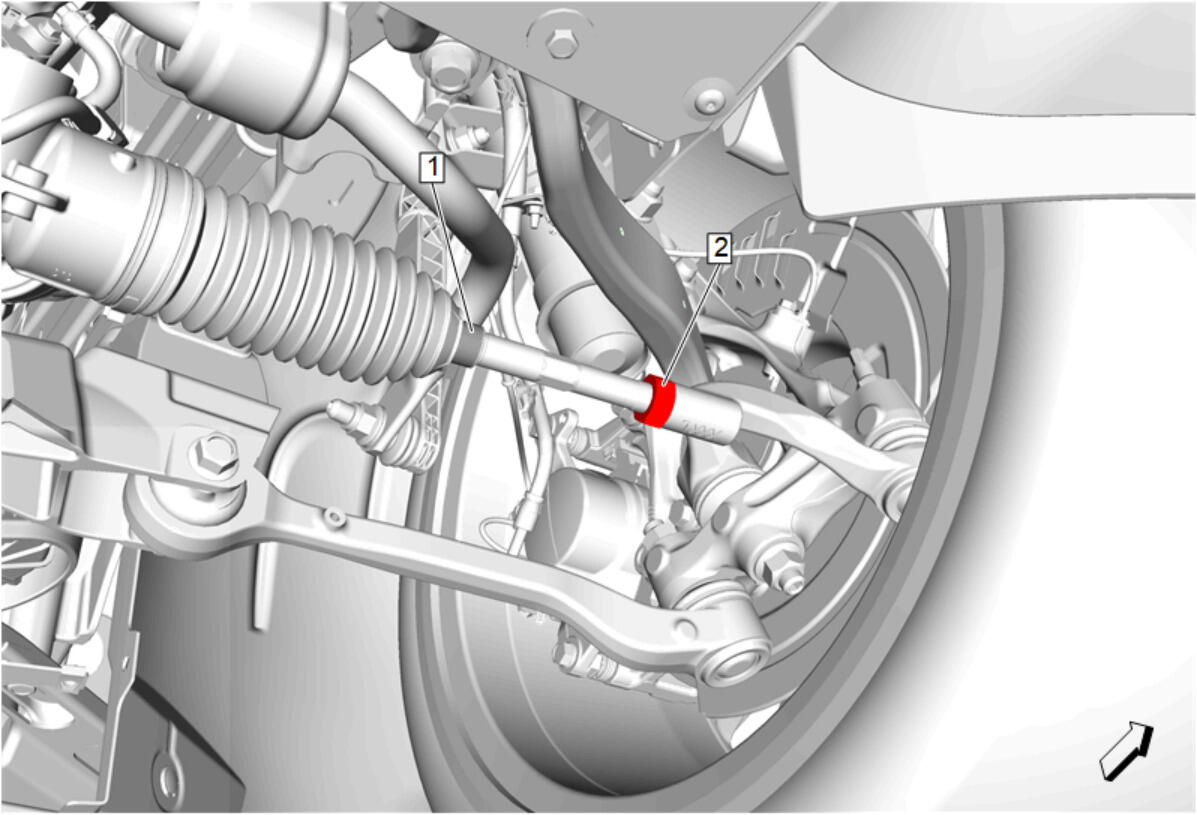

  17. GM5339197Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Clamp(1) - Disengage

  18. Steering Linkage Inner Tie Rod Nut(2) - Loosen

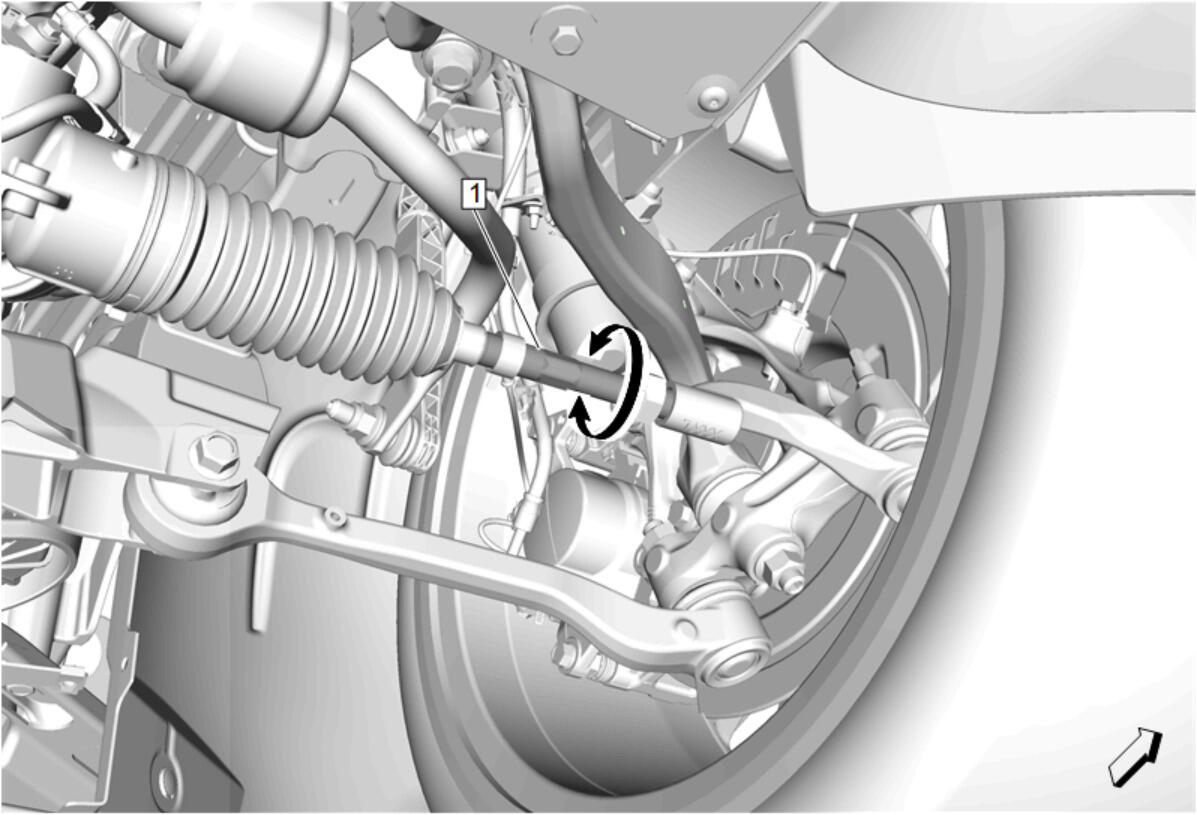

  19. GM5339198Courtesy of GENERAL MOTORS COMPANY

    Rotate the inner tie rod (1) as necessary to achieve the required front toe specification setting. Wheel Alignment Specifications

  20. GM5339197Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Linkage Inner Tie Rod Nut(2) - Tighten - Fastener Specifications

  21. Steering Gear Boot Clamp(1) - Engage
  22. Check the front toe setting after tightening.
  23. Re-adjust the front toe setting if necessary.
  24. Center the steering wheel position sensor. Steering Wheel Angle Sensor Centering
