Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

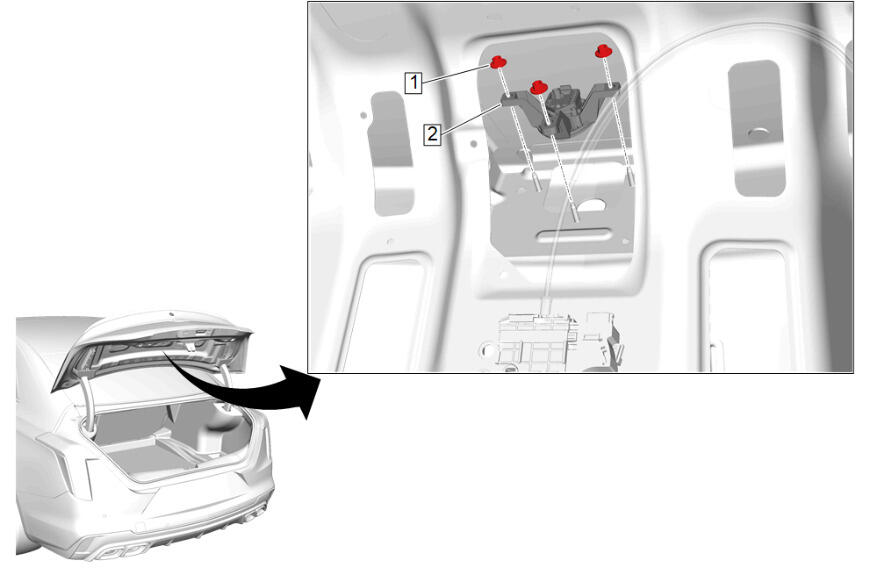

Rearview Driver Information Camera (2) - Install
- Rearview Camera Nut (1) - Install and tighten [ 3x ] - Fastener Specifications
- Connect the electrical connector.
- NOTE:
Ensure the auxiliary rear compartment latch release handle is routed through the rear compartment lid inner panel trim.
Rear Compartment Lid Inner Panel Trim (1) - Install
Rear Compartment Lid Hinge Cover (1) - Reposition [ 2x ]
Rear Compartment Lid Latch Cover (1) - Install
CAUTION:
Refer to Fastener Caution .
