X50D Battery Distribution Fuse Block X2
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Battery Cable - Positive
- OEM Connector: 84446471
- Service Connector: Service by Cable Assembly - See Part Catalog

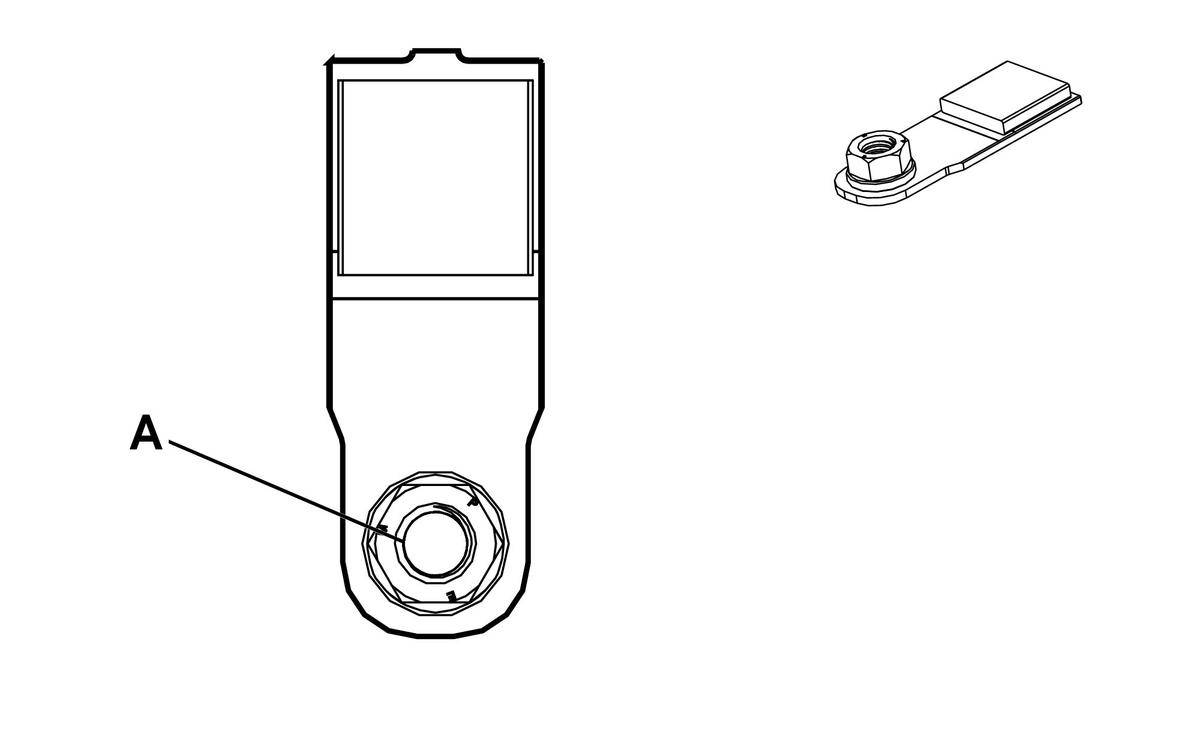

- Description: 1 -Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
70 |
RD / YE |
442 |
Battery Positive Voltage |
I |
- |
