Removal Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, start at the front of the left side instrument panel outer trim cover (1) and work your way back to release the clips to remove.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag Nut (1) - Remove [2x]
Instrument Panel Lower Airbag - Driver Side (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Slide the hood primary latch release cable handle (1) back to remove the hood primary latch release cable handle from the instrument panel lower trim panel insulator.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Remove
Instrument Panel Insulator Bolt (2) - Remove [2x]
Instrument Panel Insulator Nut (3) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Use a plastic trim tool to release the tabs from the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Remove
Front Floor Courtesy Lamp - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Move the steering column up so you can access the lower left corner of the instrument panel center trim pad (1).
Start with a flat-bladed plastic trim tool in the lower left corner of the instrument panel center trim pad (1) and work your way clockwise.
Instrument Panel Center Trim Pad (1) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Data Link Connector Bolt (1) - Remove [2x]
Instrument Panel Knee Bolster Bolt (2) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Pull instrument panel knee bolster (1) rear ward to disengage the clips, and lower past the instrument panel knee bolster deflector studs and remove.
Disconnect and reposition harness as necessary.
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct Bolt (1) - Remove
Floor Front Air Outlet Duct - Left Side- Outer (2) - Remove
Disconnect the instrument panel compartment air duct at the air conditioning evaporator and blower case and position out of way.
Courtesy of GENERAL MOTORS COMPANY

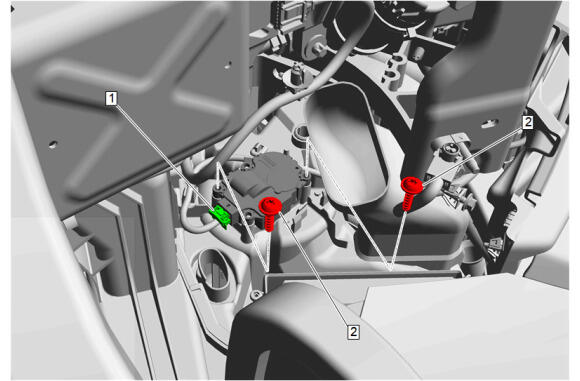

Disconnect the electrical connector. (1)
Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

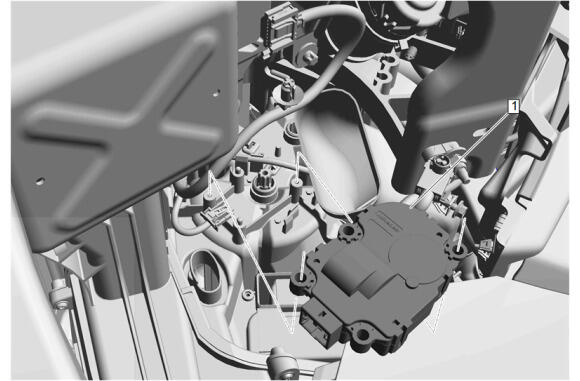

Programmable Temperature Valve Actuator- Left Side (1) - Remove
