Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Rear Window (2) - Install - Adhesive Installation of Rear Windows
Courtesy of GENERAL MOTORS COMPANY

Slide the high mount stop lamp (1) into position.
Courtesy of GENERAL MOTORS COMPANY

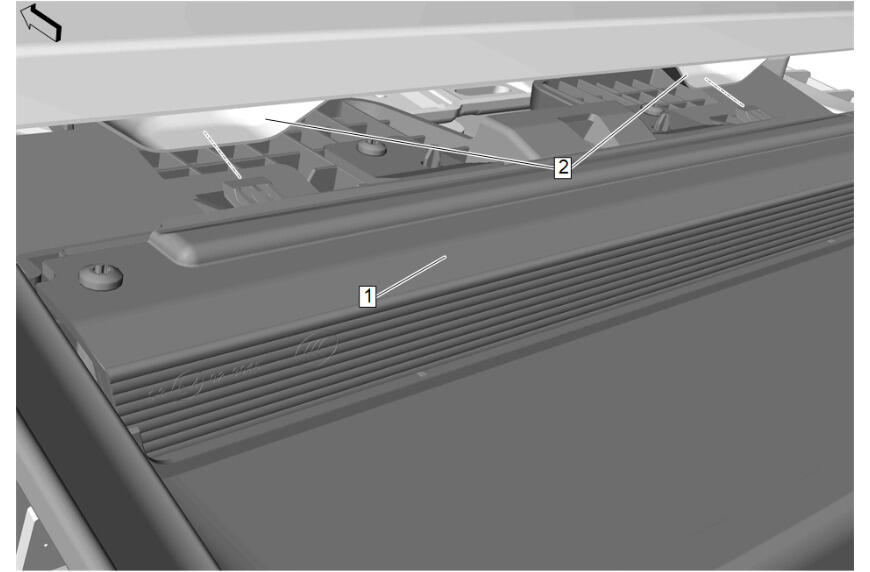

Ensure the mounting tabs on the top of the high mount stop lamp (1) are aligned with the slots on the rear of the roof structure (2).
Courtesy of GENERAL MOTORS COMPANY

While holding in place, align the retaining tabs and secure the high mount stop lamp (1) with and forward upward motion.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

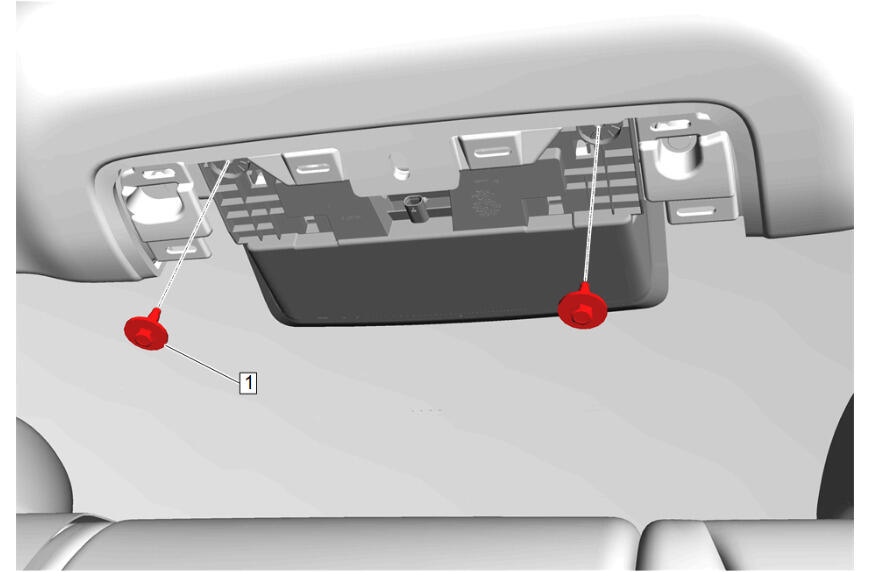

High Mount Stop Lamp Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

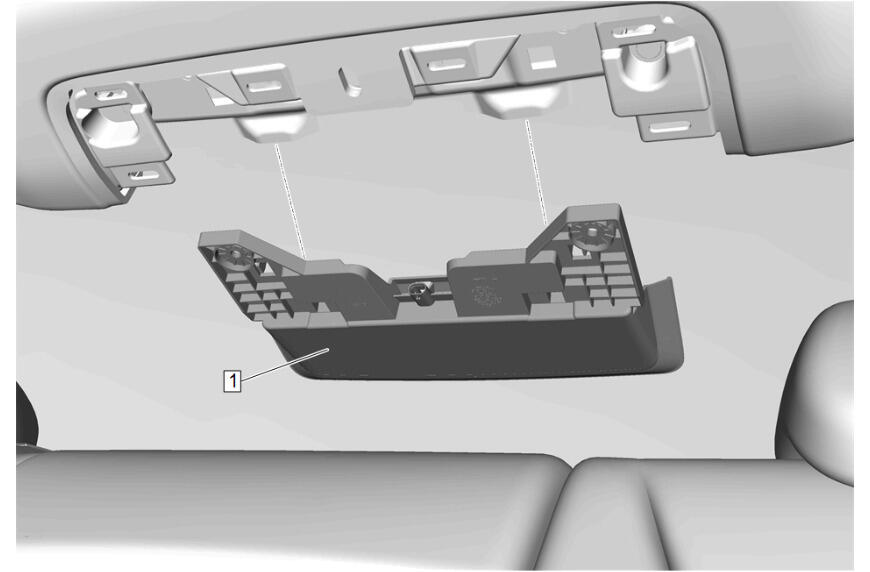

High Mount Stop Lamp Opening Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

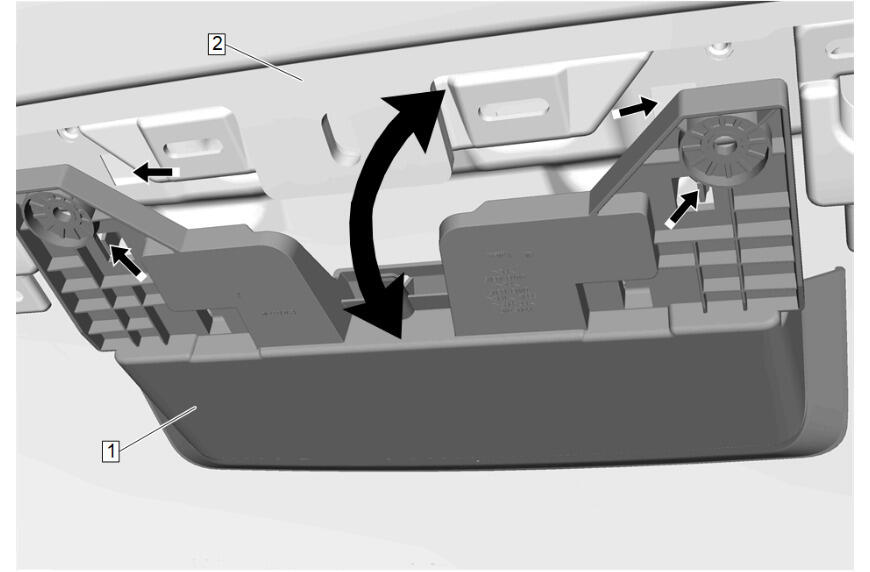

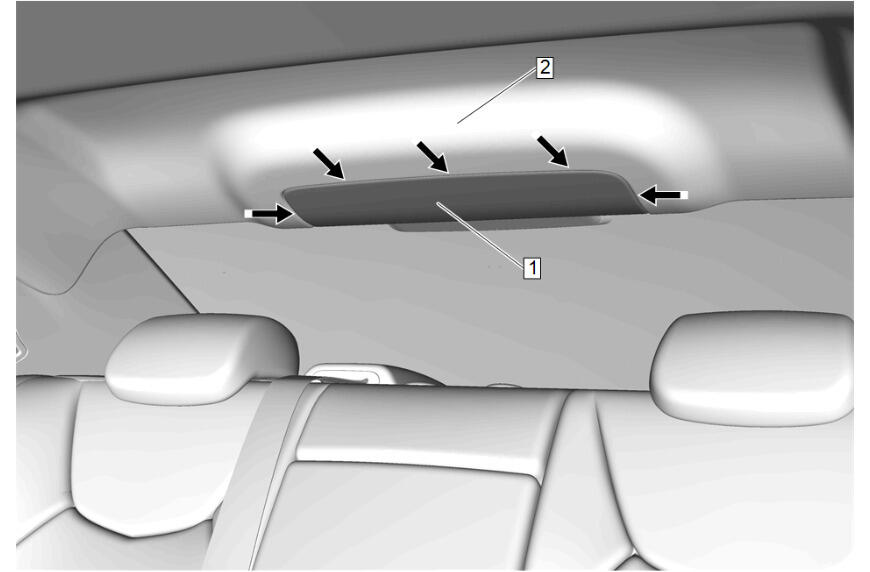

Apply pressure upward on the high mount stop lamp cover (1) to engage the retaining tabs.
Ensure the retaining tabs have engaged and the high mount stop lamp cover (1) is fully seated to the headlining trim panel (2).
Connect the defrost tab electrical connectors.
Remove the tape.
Remove any remaining adhesive residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe the surface dry with a clean lint-free towel.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Quarter Upper Trim Panel (3) - Install
Quarter Window Trim Finish Panel Bolt (2)Install and tighten - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap - Install
Courtesy of GENERAL MOTORS COMPANY

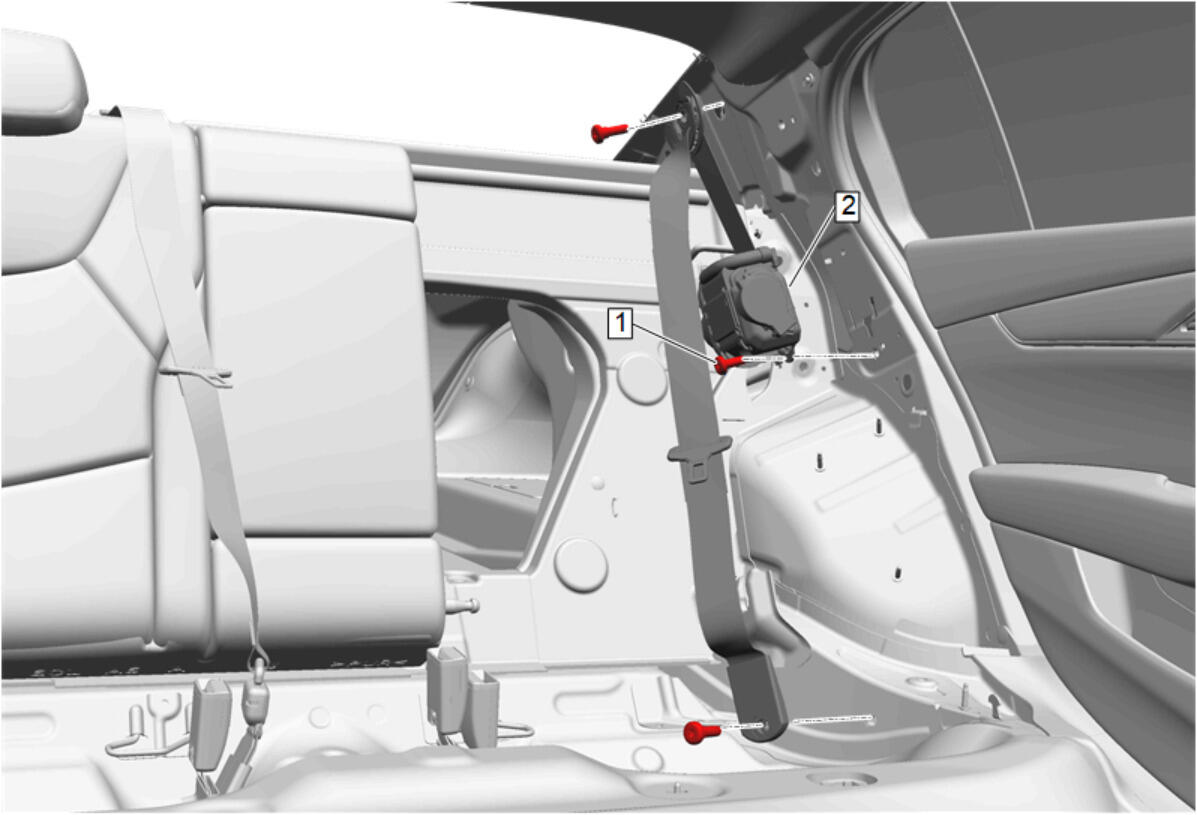

Install the lower rear seat belt retractor bolt (1) on the side of the trim panel being replaced. Fastener Specifications
Feed the rear seat belt retractor belt through the bezel opening in the quarter upper trim panel.
Courtesy of GENERAL MOTORS COMPANY

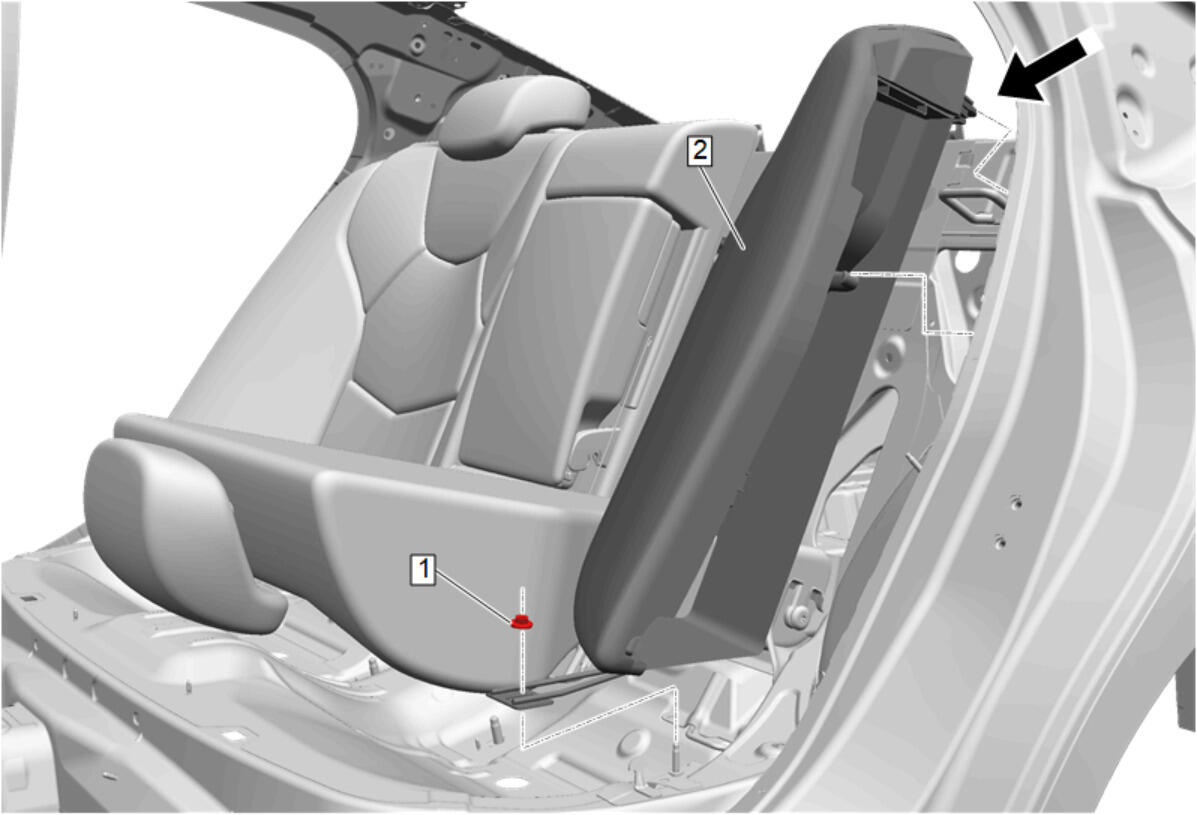

Rear Seat Back Bolster (2) - Install
Rear Seat Back Bolster Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

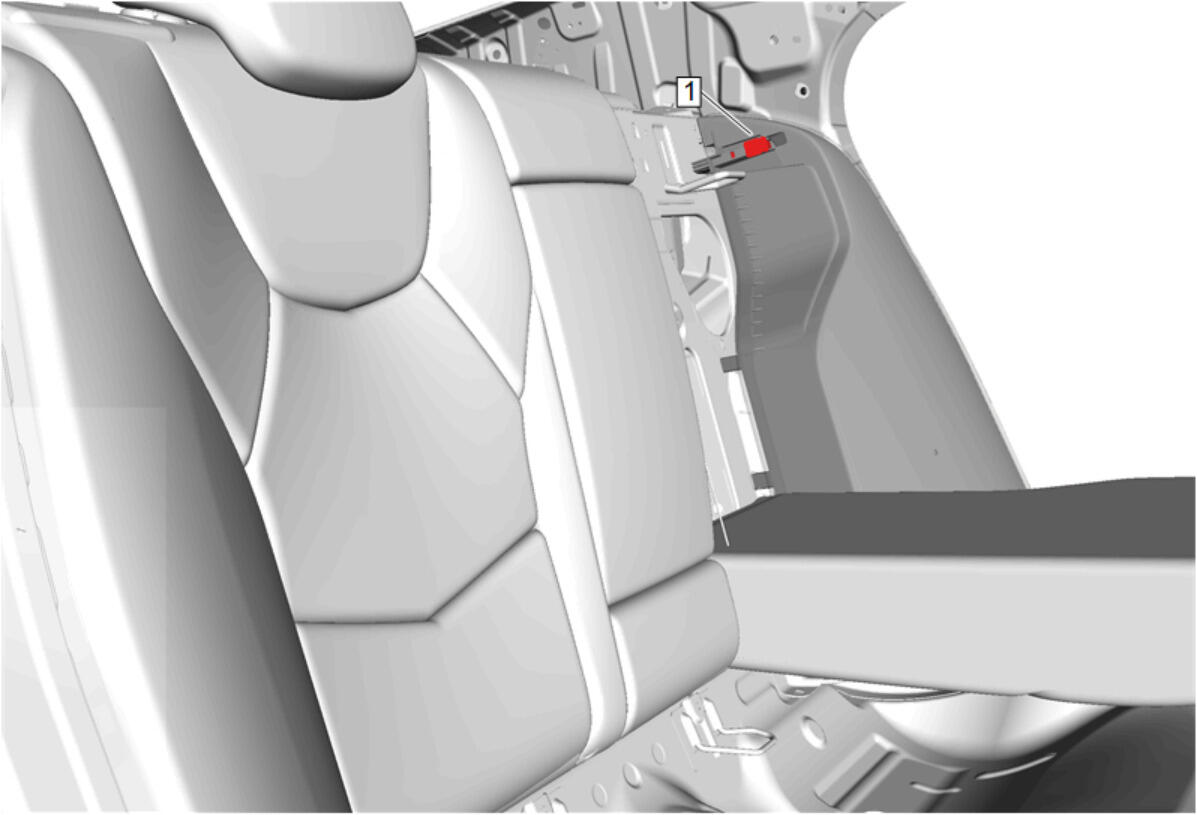

Slide the rear seat back bolster retainer lock (1) toward the front of the vehicle.
Courtesy of GENERAL MOTORS COMPANY

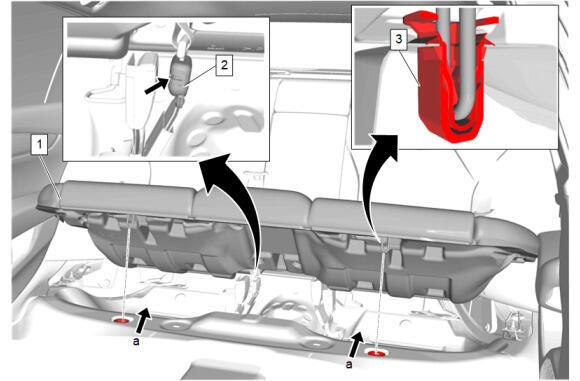

Inspect each high retention retainer and sheet metal interface for flushness. Replace retainer as required if damage occurs during removal.
When installing new plastic retainers on the front of the seat, ONLY seat the retainer to the first click, otherwise the insertion force into the sheet metal will be greatly increased.
Rear Seat Cushion (1) - Install
Enable the SIR System. SIR Disabling and Enabling .
