Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Connect the electrical connector.

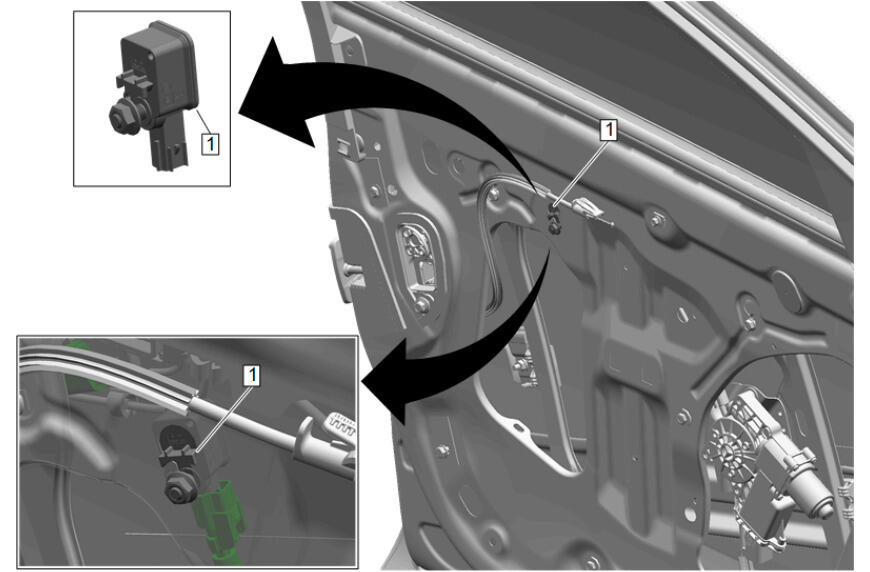

- Slide the sensor into the keyhole slot.
- Airbag Side Impact Sensor (1) - Install and tighten - Fastener Specifications
Route front side door inside handle cable through hole in deflector.
- Front Side Door Water Deflector (1) - Install
- Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
- Enable the SIR System. SIR Disabling and Enabling .
CAUTION:
Refer to Fastener Caution .
