Fastener Specifications

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5445385Courtesy of GENERAL MOTORS COMPANY
Rear Shock Absorber

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Shock Absorber Upper Mounting Nut [ 3x ] - - 43 N.m (32 lb ft) Rear Shock Absorber Replacement (FE3, with F55) Rear Shock Absorber Replacement (FE2, FE3 without F55)
2 Rear Shock Absorber Bolt Yes - First Pass: 100 (74 lb ft)
Final Pass: 90 - 105 degrees		 Rear Shock Absorber Replacement (FE3, with F55) Rear Shock Absorber Replacement (FE2, FE3 without F55)
GM5445450Courtesy of GENERAL MOTORS COMPANY
Rear Stabilizer Shaft Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Stabilizer Shaft Link Nut - - 43 N.m (32 lb ft) Rear Stabilizer Shaft Link Replacement
2 Rear Stabilizer Shaft Link Bolt - - 58 N.m (43 lb ft) Rear Stabilizer Shaft Link Replacement
GM5445436Courtesy of GENERAL MOTORS COMPANY
Rear Stabilizer Shaft

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Stabilizer Shaft Clamp Stud - - 58 N.m (43 lb ft) Rear Stabilizer Shaft Replacement (LSY) Rear Stabilizer Shaft Replacement (L3B)
2 Rear Stabilizer Shaft Clamp Bolt [ 3x ] - - 58 N.m (43 lb ft) Rear Stabilizer Shaft Replacement (LSY) Rear Stabilizer Shaft Replacement (L3B)

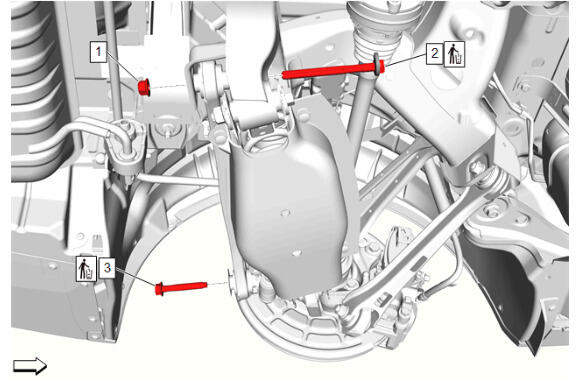

GM5492234Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Adjust Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Link Inner Nut - - Torque to be applied during alignment. Rear Toe Adjustment
2 Rear Suspension Link Inner Bolt Yes - - Rear Suspension Adjust Link Replacement
3 Rear Suspension Adjust Link Bolt Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 90 - 105 degrees		 Rear Suspension Adjust Link Replacement
GM5493911Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Bracket - Front

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Bracket Bolt - - 58 N.m (43 lb ft) Rear Suspension Bracket Replacement - Front
2 Rear Suspension Bracket Bolt - - 58 N.m (43 lb ft) Rear Suspension Bracket Replacement - Front
3 Rear Suspension Cradle Front Bolt Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 90 - 105 degrees		 Rear Suspension Bracket Replacement - Front

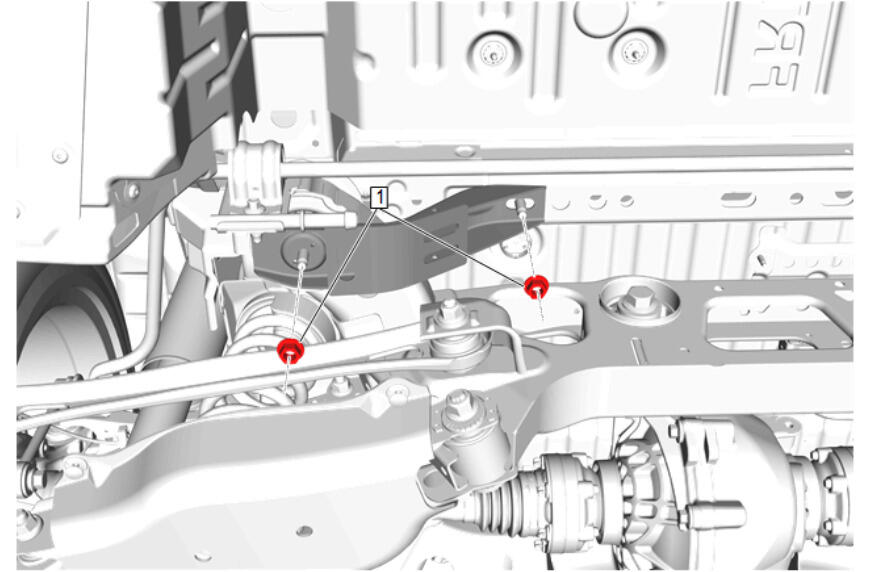

GM5442954Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Bracket - Rear

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Bracket Nut [ 2x ] - - 58 (43 lb ft) Rear Suspension Bracket Replacement - Rear

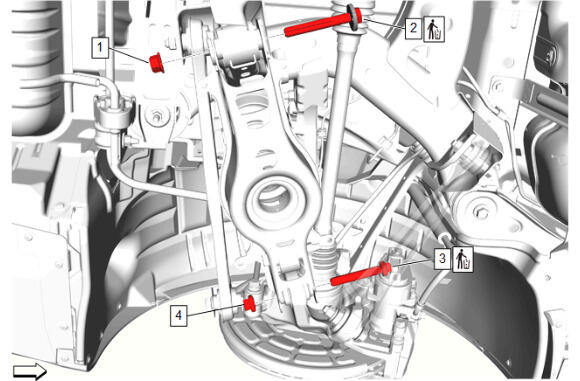

GM5492274Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Lower Control Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Lower Control Arm Inner Nut - - Torque to be applied during alignment. Rear Camber Adjustment
2 Rear Suspension Lower Control Arm Inner Bolt Yes - - Rear Suspension Lower Control Arm Replacement
3 Rear Suspension Lower Control Arm Outer Bolt Yes - - Rear Suspension Lower Control Arm Replacement
4 Rear Suspension Lower Control Arm Outer Nut - - First Pass: 150 (111 lb ft)
Final Pass: 90 - 105 degrees		 Rear Suspension Lower Control Arm Replacement

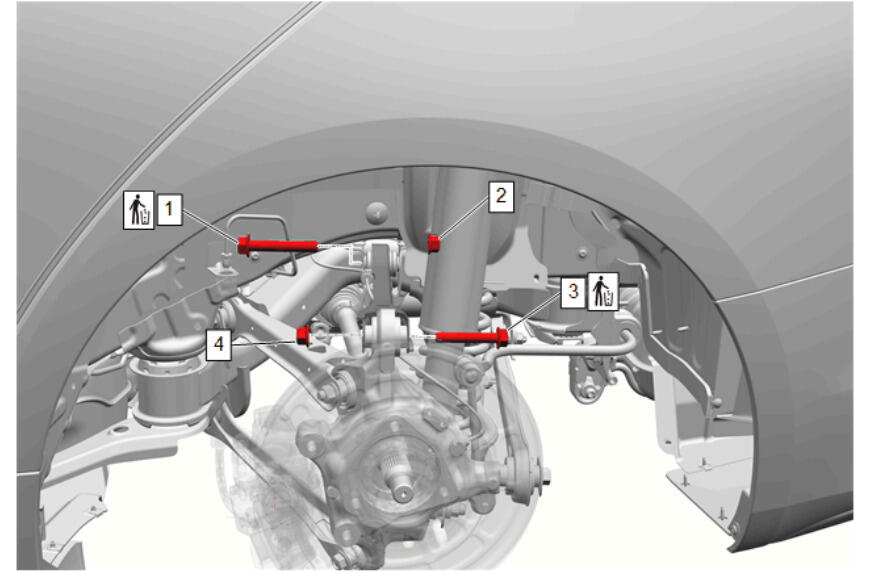

GM5445449Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Upper Control Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Upper Control Arm Inner Bolt Yes - - Rear Suspension Upper Control Arm Replacement
2 Rear Suspension Upper Control Arm Inner Nut - - First Pass: 70 N.m (52 lb ft)
Final Pass: 90 - 100 degrees		 Rear Suspension Upper Control Arm Replacement
3 Rear Suspension Upper Control Arm Outer Bolt Yes - - Rear Suspension Upper Control Arm Replacement
4 Rear Suspension Upper Control Arm Inner Bolt - - First Pass: 70 N.m (52 lb ft)
Final Pass: 90 - 100 degrees		 Rear Suspension Upper Control Arm Replacement

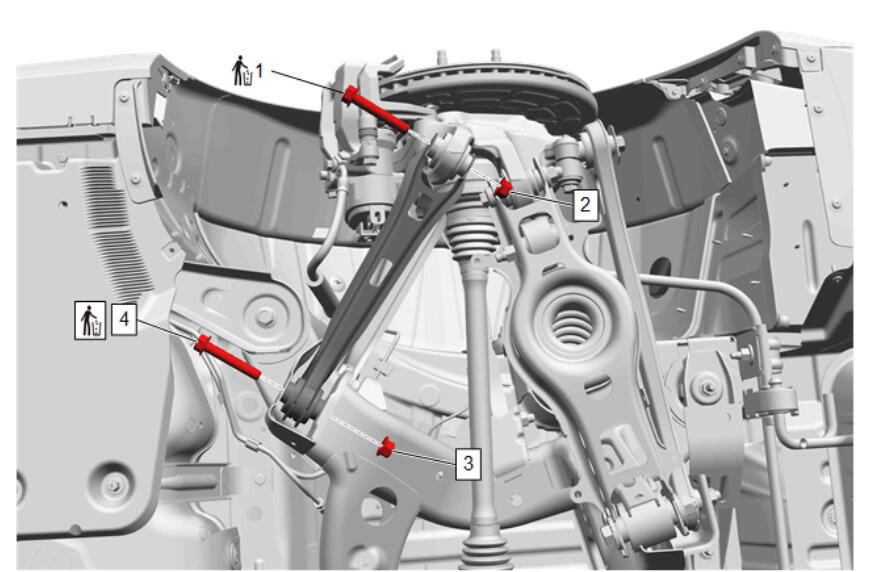

GM5446347Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Lower Trailing Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Trailing Arm Bolt Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 90 - 105 degrees		 Rear Suspension Lower Trailing Link Replacement
2 Rear Suspension Trailing Arm Nut - - - Rear Suspension Lower Trailing Link Replacement
3 Rear Suspension Trailing Arm Bracket Nut - - First Pass: 70 N.m (52 lb ft)
Final Pass: 90 - 105 degrees		 Rear Suspension Lower Trailing Link Replacement
4 Rear Suspension Trailing Arm Bracket Bolt Yes - - Rear Suspension Lower Trailing Link Replacement

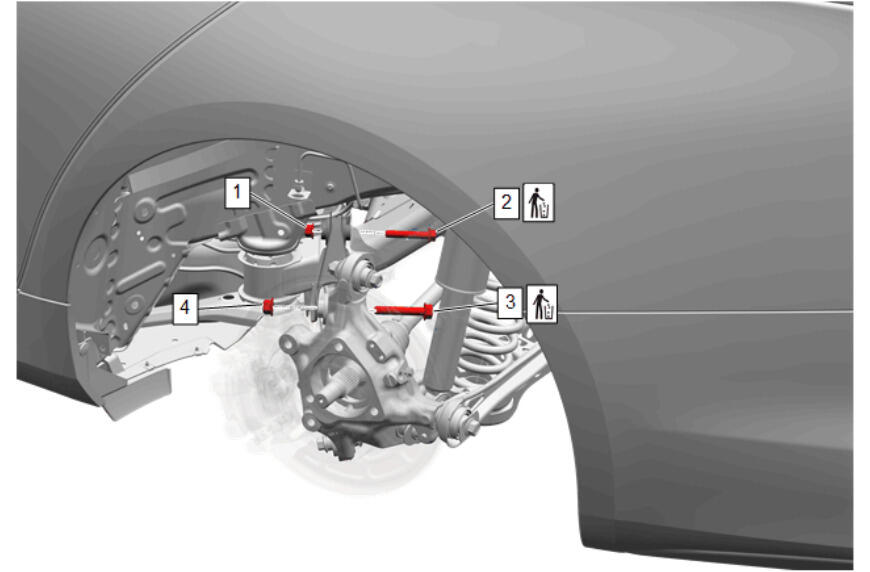

GM5446150Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Upper Trailing Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Trailing Arm Bracket Nut - - First Pass: 70 N.m (52 lb ft)
Final Pass: 90 - 105 degrees		 Rear Suspension Upper Trailing Link Replacement
2 Rear Suspension Trailing Arm Bracket Bolt Yes - - Rear Suspension Upper Trailing Link Replacement
3 Rear Suspension Trailing Arm Bolt Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 90 - 105 degrees		 Rear Suspension Upper Trailing Link Replacement
4 Rear Suspension Trailing Arm Nut - - - Rear Suspension Upper Trailing Link Replacement

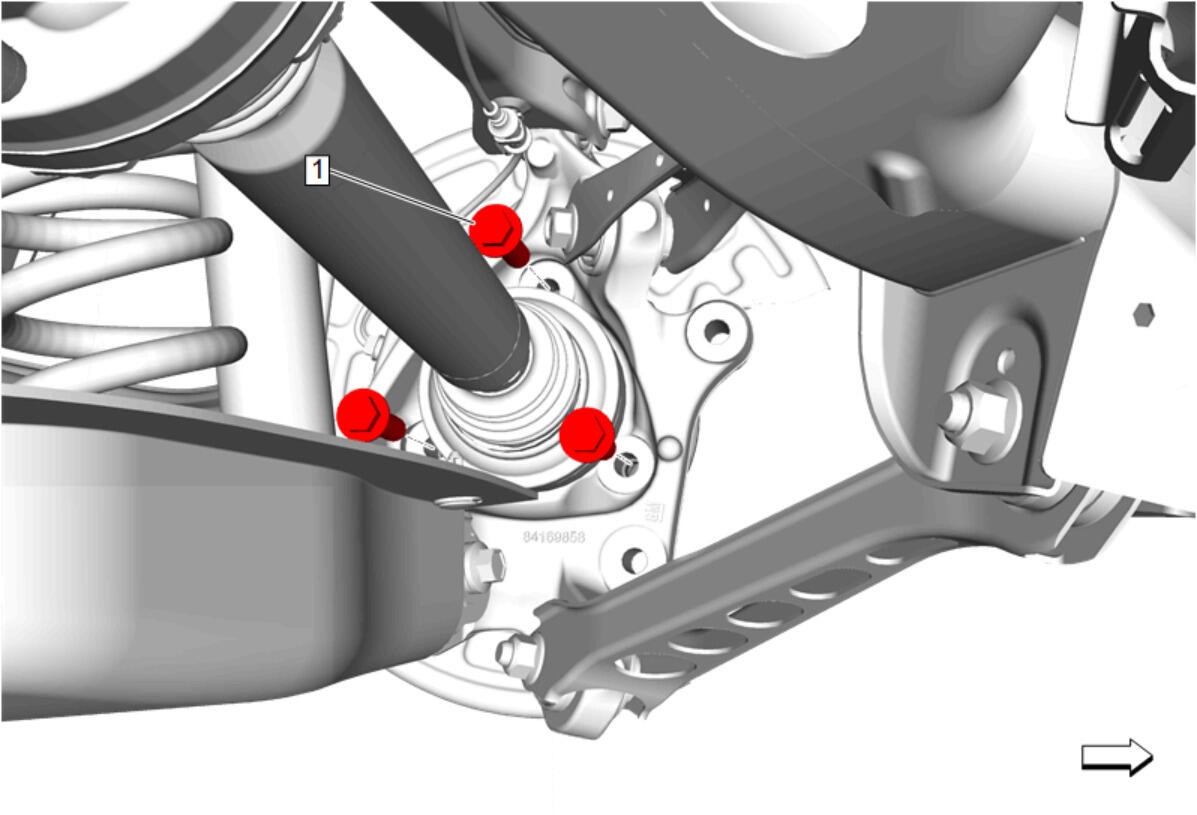

GM5338409Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Hub

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheel Hub Bolt [ 3x ] - Yes First Pass: 100 N.m (74 lb ft)
Final Pass: 15 - 30 degrees		 Rear Wheel Hub Replacement
