M17 Liftgate Motor Assembly (TB5/TC2)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

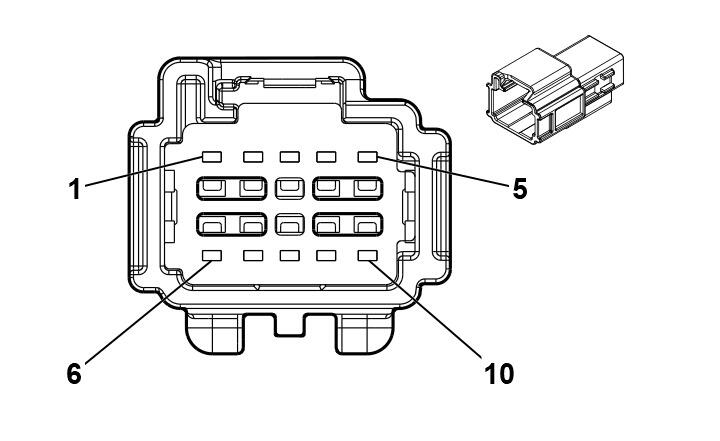

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | J-35616-17 (LT GN) |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1.5 | WH | 5798 | Liftgate Motor Open Control | I | (TB5/TC2) |
| 2 | 0.5 0.5 |
BN / RD BN / RD |
5803 5803 |
Liftgate Position Sensor Voltage Reference Liftgate Position Sensor Voltage Reference |
I I |
(TB5/TC2) Z88 |
| 3 | 0.35 | BK / GN | 5804 | Liftgate Position Sensor Low Reference | I | (TB5/TC2) |
| 4 | 0.35 | BU / WH | 5805 | Liftgate Position Sensor Signal 1 | I | Z88 |
| 5 | 1.5 | BN / WH | 5799 | Liftgate Motor Close Control | I | (TB5/TC2) |
| 6 | 0.35 0.35 |
GY BK / GN |
9001 9001 |
- - |
I I |
(TB5/TC2) Z88 |
| 7 | 0.35 | BN / YE | 5806 | Liftgate Position Sensor Signal 2 | I | (TB5/TC2) |
| 8 - 9 | - | - | - | Not Occupied | - | - |
| 10 | 0.35 0.35 |
GY BK / GN |
9001 9001 |
- - |
I I |
(TB5/TC2) Z88 |
