M115 Power Transfer Unit Shift Actuator X1 (F48)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

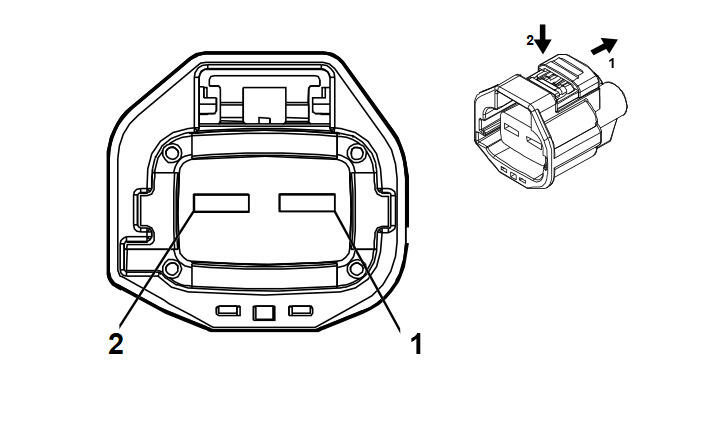

Connector Part Information
- Harness Type:Engine Wiring Harness
- OEM Connector: 13596768
- Service Connector: 19355452
- Description: 2 -Way F 6.3 Series, Sealed(D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BN / GN |
3945 |
All Wheel Drive Power Transfer Unit Motor Control B |
I |
F48-LSY |
| 2 |
2.5 |
VT / BN |
3944 |
All Wheel Drive Power Transfer Unit Motor Control A |
I |
F48-LSY |
