B315B Transmission Range Control Valve 2 Position Switch (M3U)
WARNING: This page is about a different car, the 2022 GMC Terrain and 2022 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

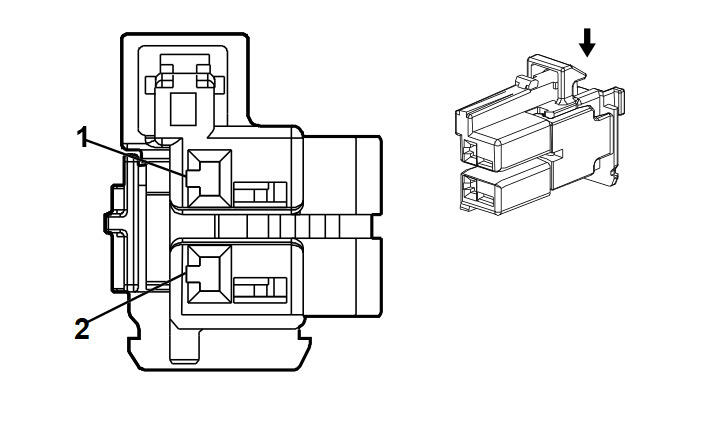

Connector Part Information
- Harness Type:Transmission Harness
- OEM Connector: 2289523-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 2 -Way F 1.2 MCON Series(BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE / BU |
3705 |
Electronic Transmission Range Select Switch Analog Signal 2 |
I |
- |
| 2 |
0.5 |
WH / BK |
4171 |
Transmission Input Shaft Speed Sensor Circuit 9V Reference |
I |
- |
